Repairs › Heater assembly - models without air conditioning
Heating and ventilationHeater assembly - models without air conditioning · page 1 of 2

Refit

  1. Fit plenum air intake.
  2. Fit trim clips and centre bolt securing plenum air intake to body.
  3. Fit rubber spacers and washers to wiper linkage.
  4. Fit locknuts to wiper linkage and tighten to 7 Nm (5.2 lbf.ft).
  5. Fit wiper arms to wiper linkage.
  6. Fit nuts securing wiper arms to wiper linkage and tighten to 15 Nm (11 lbf.ft).
  7. Fit caps to wiper arms.
  8. Fit both windscreen side finishers. EXTERIOR FITTINGS, REPAIRS, Side finisher - windscreen.

Heater assembly - models without air conditioning

$% 80.20.01.99

Remove

  1. Drain cooling system. l COOLING SYSTEM - Td5, ADJUSTMENTS, Drain and refill. l COOLING SYSTEM - V8, ADJUSTMENTS, Drain and refill.
  2. Diesel models: Remove 3 bolts and remove engine cover.

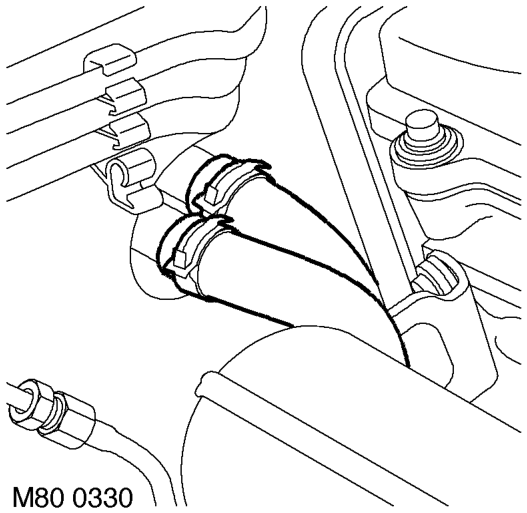

Heater assembly - models without air conditioning – Diesel models: Remove 3 bolts and remove engine cover.
  1. Release clips and disconnect coolant hoses from heater pipes.

CAUTION: Always fit plugs to open connections to prevent contamination.

  1. Remove facia assembly. INTERIOR TRIM COMPONENTS, REPAIRS, Fascia.
