Land Rover Discovery II (UK)45 · Heating and ventilation
45 · Heating & A/C

Heater assembly - models without air conditioning (page 2 of 2)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
Heating and ventilationHeater assembly - models without air conditioning · page 2 of 2
Diagram
  1. Protect the carpet from coolant spillage.

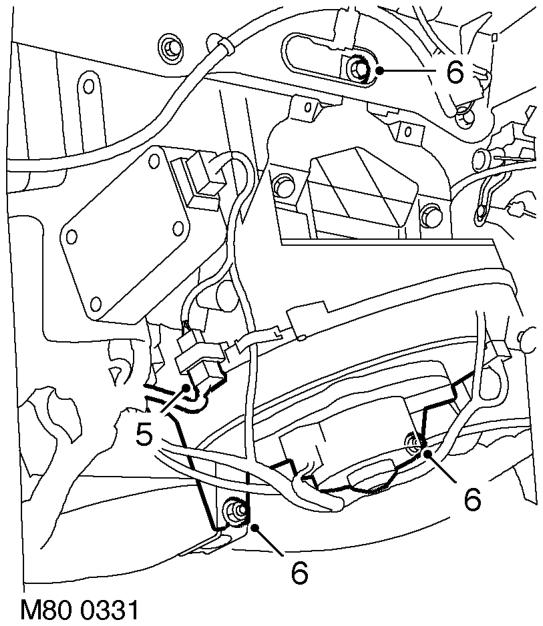

  2. Disconnect harness multiplug from heater blower motor.
  3. Remove bolt and 2 nuts securing heater blower housing assembly to body and remove blower.

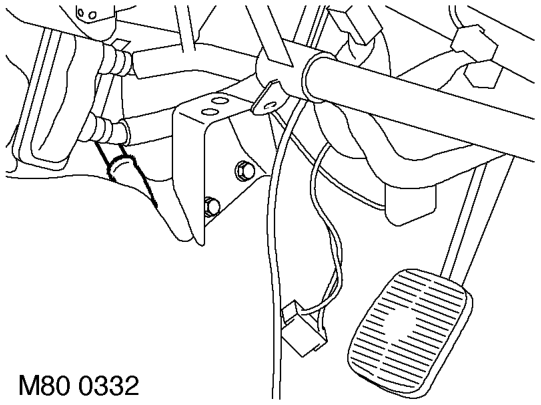

Remove bolt and 2 nuts securing heater blower housing assembly to body and remove blower.

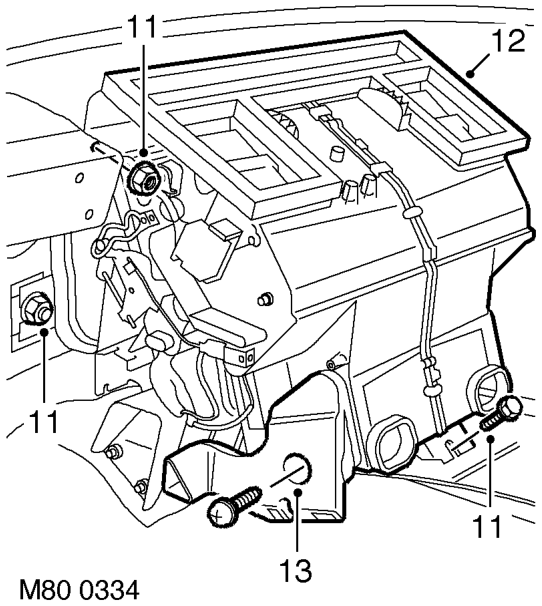

  1. Disconnect 2 drain tubes from base of heater.
  2. Remove 4 nuts and 1 bolt securing heater to
  3. Remove heater from vehicle.
  4. Remove 2 screws securing heater RH and LH

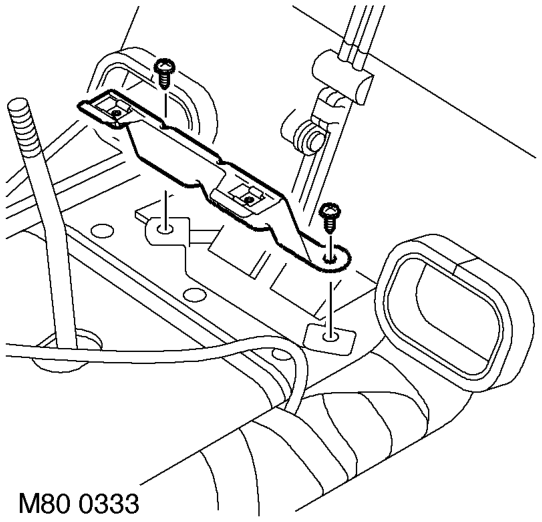

Remove 2 screws securing heater RH and LH
  1. Remove 2 screws securing console bracket to tunnel and remove bracket.
  2. Release radio coaxial cable from behind heater pipes.
Release radio coaxial cable from behind heater pipes.

body.

footwell outlet duct to heater casing and remove ducts.
