Land Rover Discovery II (UK)45 · Heating and ventilation
45 · Heating & A/C

Servo - recirculation flap

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Servo - recirculation flap
Heating and ventilationServo - recirculation flap · page 1 of 2

Servo - recirculation flap

$% 80.10.18

Remove

Servo - recirculation flap – $% 80.10.18

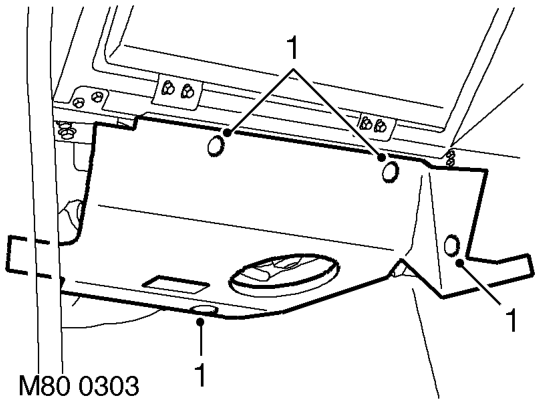

  1. Remove 4 studs securing passenger toe board and remove toe board.
Servo - recirculation flap – Remove 4 studs securing passenger toe board and remove toe board.

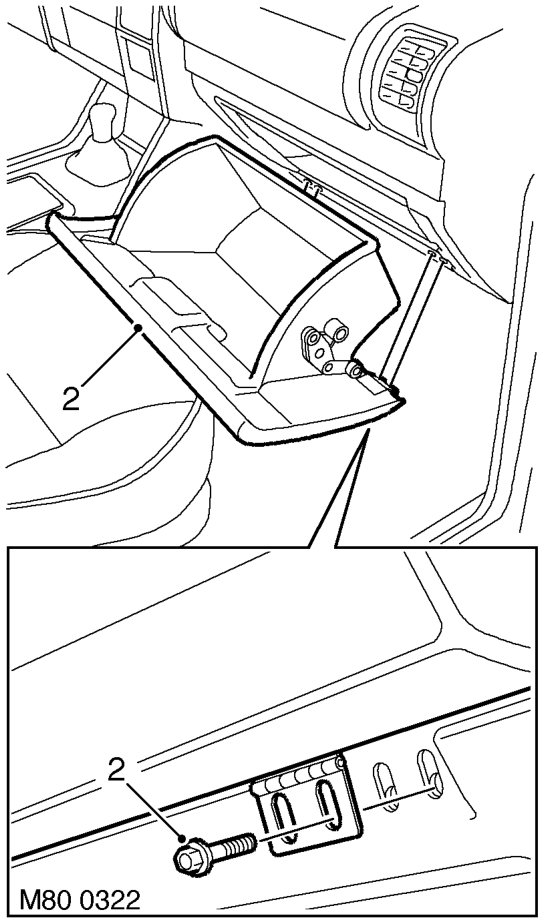

  1. Remove 4 screws securing glove box, release catch and remove glove box.
Servo - recirculation flap – Remove 4 screws securing glove box, release catch and remove glove box.

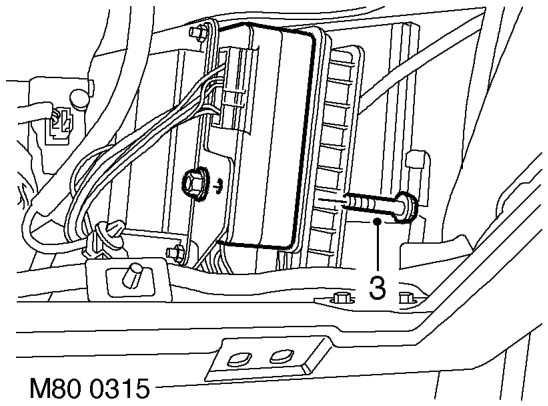

  1. Remove bolt securing BCM, release BCM from retaining peg and lower BCM.
Servo - recirculation flap – Remove bolt securing BCM, release BCM from retaining peg and lower BCM.

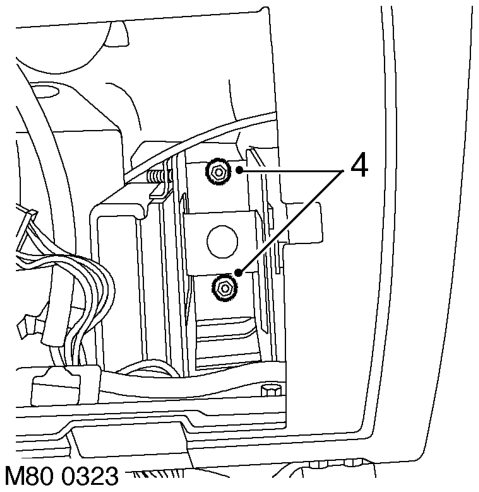

  1. Remove 2 nuts securing ECU assembly and lower ECU assembly to gain access to servo screws.
Servo - recirculation flap – Remove 2 nuts securing ECU assembly and lower ECU assembly to gain access to servo screws.

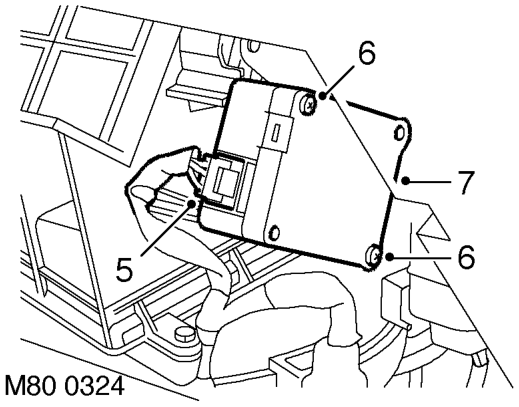

  1. Disconnect multiplug from servo.
  2. Remove 2 screws securing servo.
  3. Release servo, disconnect operating lever and remove servo.
