Heater control and fan switch (page 2 of 2)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
Heating and ventilationHeater control and fan switch · page 2 of 2

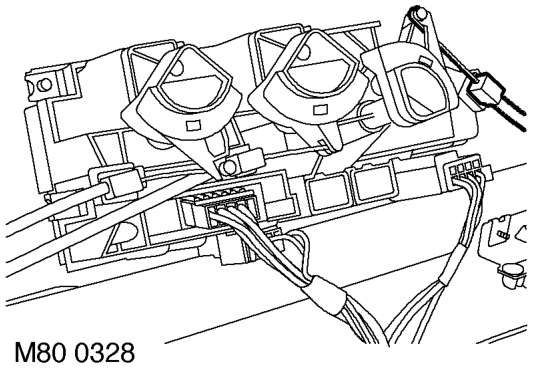

  1. Remove louvre panel assembly. Refit INTERIOR TRIM COMPONENTS, REPAIRS, Louvre panel assembly - centre fascia.
Remove louvre panel assembly. Refit  INTERIOR TRIM COMPONENTS, REPAIRS, Louvre panel asse

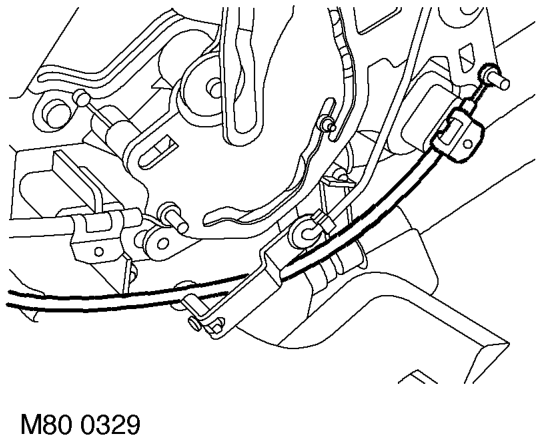

  1. Release control cable abutment from control housing and disconnect inner cable from control.
Release control cable abutment from control housing and disconnect inner cable from contro
  1. Release clip securing control outer cable to heater case and disconnect inner cable from flap lever.
  2. Remove control cable.

1. Fit new control cable, connect inner cable to control and secure abutment to control housing.

  1. Fit other end of inner cable to flap lever.
  2. Position control to maximum heat for temperature control cables or demist for air flow control cable, hold flap lever in fully closed position and secure outer cable in clip on heater casing.
  3. Refit louvre panel assembly. INTERIOR TRIM COMPONENTS, REPAIRS, Louvre panel assembly - centre fascia.
  4. Driver temperature and air flow control cables: Close fuse access cover and secure fixings.
  5. Passenger temperature control cable: Refit glove box and secure with bolts.
