Repairs › Resistor pack - power resistor A/C
Heating and ventilationResistor pack - power resistor A/C
Diagram

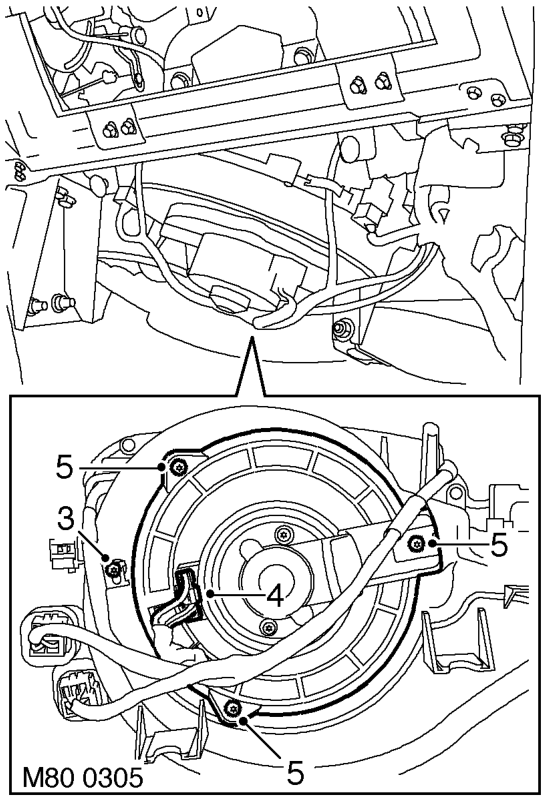

  1. Remove screw securing harness to blower motor and release harness.
  2. Disconnect multiplug from blower motor.
  3. Remove 3 screws securing blower motor to casing and remove blower motor.

Refit

  1. Position blower motor to casing and secure with screws.
  2. Connect multiplug to blower motor.
  3. Position harness and secure clip with screw.
  4. Fit glove box, align hinges and tighten screws.
  5. Position toe board and secure with studs.

Resistor pack - power resistor A/C

$% 80.20.17

Remove

Resistor pack - power resistor a/c – $% 80.20.17

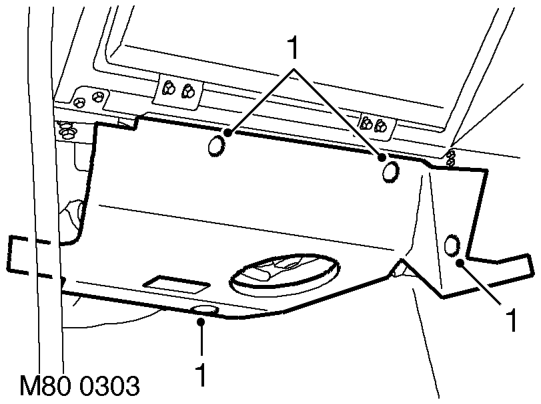

  1. Remove 4 studs securing toe board and remove toe board.
Resistor pack - power resistor a/c – Remove 4 studs securing toe board and remove toe board.

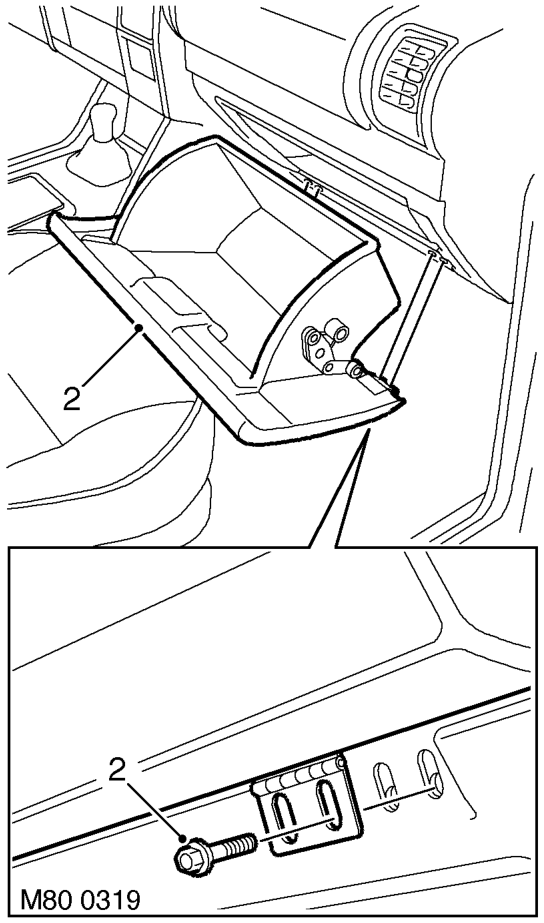

  1. Remove 4 screws securing glove box, release catch and remove glove box.
