Land Rover Discovery II (UK)45 · Heating and ventilation
45 · Heating & A/C

Servo - air distribution control

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Servo - air distribution control
Heating and ventilationServo - air distribution control

Servo - air distribution control

$% 80.10.30

Remove

  1. Disconnect battery earth lead.
  2. RHD models: Remove heater assembly. HEATING AND VENTILATION, REPAIRS, Heater assembly - models with air conditioning.
  3. LHD models:

Remove heater motor assembly. HEATING AND VENTILATION, REPAIRS, Blower assembly.

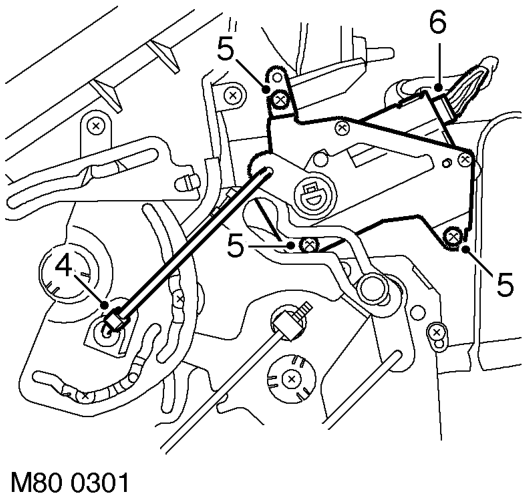

Servo - air distribution control – Remove heater motor assembly.  HEATING AND VENTILATION, REPAIRS, Blower assembly.
  1. Release clip securing operating lever and release the lever from linkage.
  2. Remove 3 screws securing servo support bracket to casing and release servo.
  3. Disconnect multiplug from servo and remove servo.

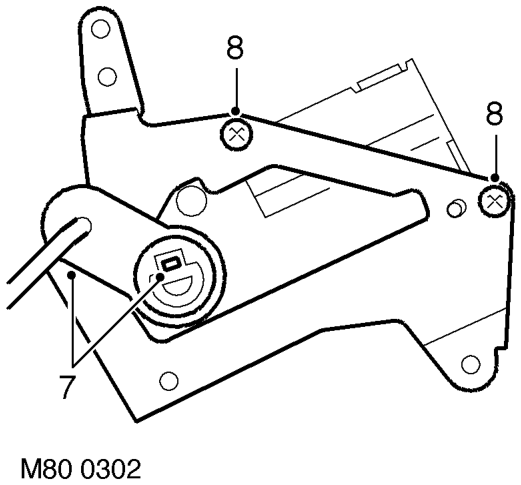

Servo - air distribution control – Disconnect multiplug from servo and remove servo.
  1. Release clip securing operating lever to servo and remove lever.
  2. Remove 2 screws securing support bracket and remove support bracket.

Refit

  1. Position support bracket to servo and secure with screws.
  2. Position servo lever to servo and secure clip.
  3. Connect multiplug to servo.
  4. Position servo to casing and secure with screws.
  5. Connect operating lever to servo and secure with clip.
  6. RHD models: Fit heater assembly. HEATING AND VENTILATION, REPAIRS, Heater assembly - models with air conditioning.
  7. LHD models: Fit heater motor assembly. HEATING AND VENTILATION, REPAIRS, Blower assembly.
  8. Connect battery earth lead.
