Manifolds and exhaust systems - Td5Gasket - inlet manifold · page 1 of 2

Gasket - inlet manifold

$% 30.15.08

Remove

Note: The following procedure covers engines fitted with or without an EGR cooler. The EGR cooler is bolted to the front of the cylinder head.

  1. Remove battery cover.
  2. Disconnect battery earth lead.
  3. Remove 3 bolts and remove engine acoustic cover.
  4. Release retainers and remove upper fan cowl.
Gasket - inlet manifold – Release retainers and remove upper fan cowl.

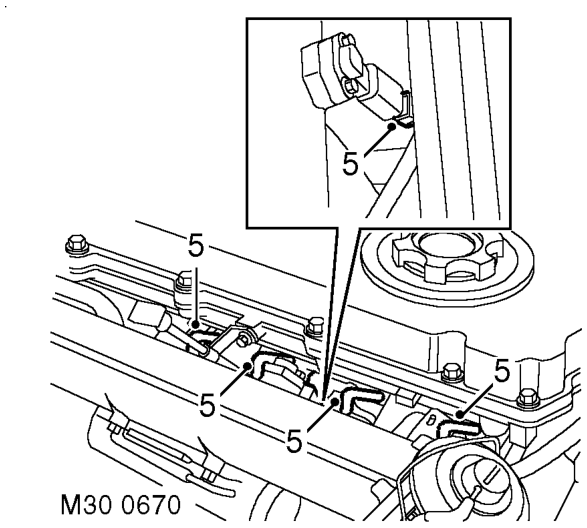

  1. Disconnect leads from 4 glow plugs and multiplug from MAP sensor.
Gasket - inlet manifold – Disconnect leads from 4 glow plugs and multiplug from MAP sensor.
  1. Remove dip stick tube and discard 'O' ring.

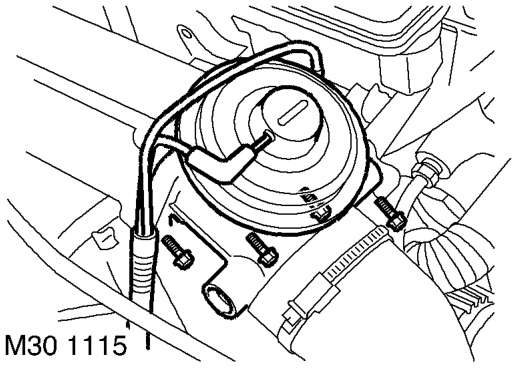

  2. Remove 4 bolts, release EGR valve from inlet manifold and discard gasket.
Gasket - inlet manifold – Remove 4 bolts, release EGR valve from inlet manifold and discard gasket.

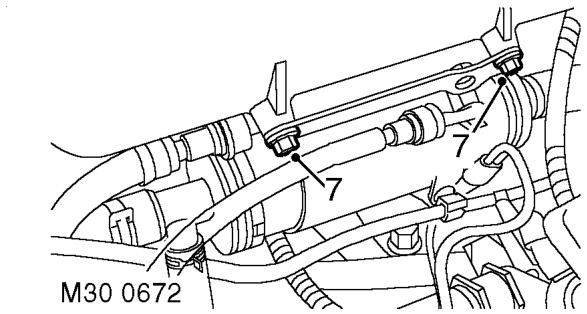

  1. Remove 4 bolts securing fuel cooler to inlet manifold.
Gasket - inlet manifold – Remove 4 bolts securing fuel cooler to inlet manifold.

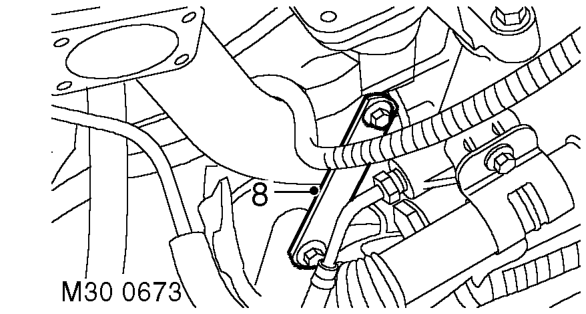

  1. Remove 2 bolts and remove alternator support bracket.
Gasket - inlet manifold – Remove 2 bolts and remove alternator support bracket.

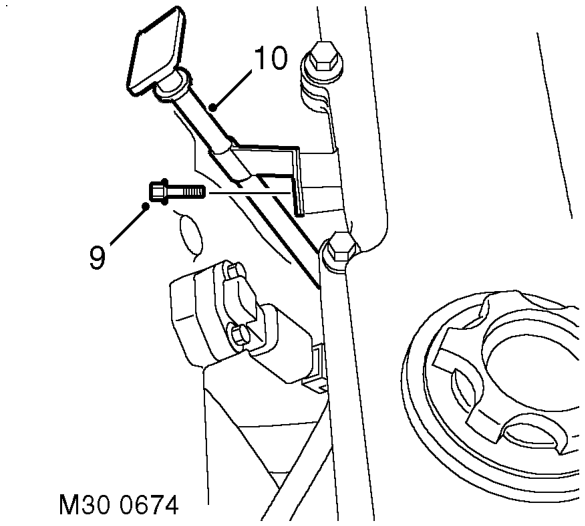

  1. Remove bolt securing engine dip stick tube to camshaft carrier.
