Land Rover Discovery II (UK)19 · Manifolds and exhaust systems - Td5
19 · Engine

Pipe - front

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Pipe - front
Manifolds and exhaust systems - Td5Pipe - front

REPAIRS

Pipe - front

$% 30.10.09

Remove

Pipe - front – $% 30.10.09

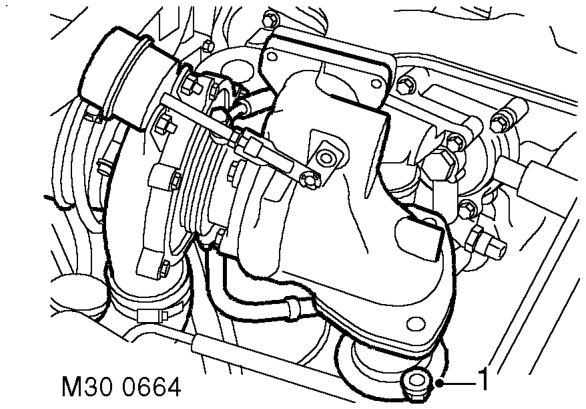

  1. Remove 3 nuts, release front pipe from turbocharger and discard gasket.
  2. Raise vehicle on ramp.
Pipe - front – Raise vehicle on ramp.

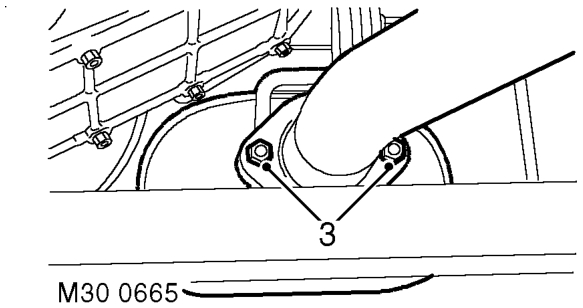

  1. Remove 2 nuts and release front pipe from intermediate pipe/silencer.
Pipe - front – Remove 2 nuts and release front pipe from intermediate pipe/silencer.

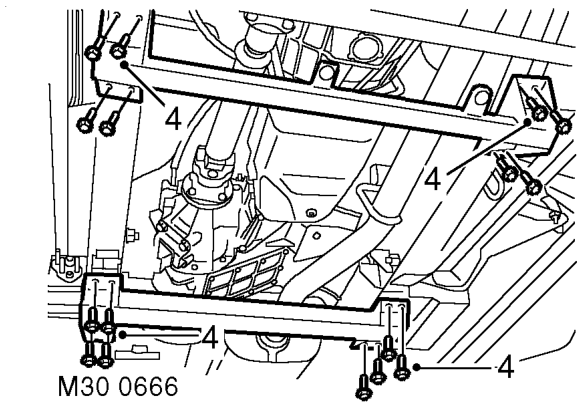

  1. Remove 16 bolts and remove chassis cross members.
Pipe - front – Remove 16 bolts and remove chassis cross members.

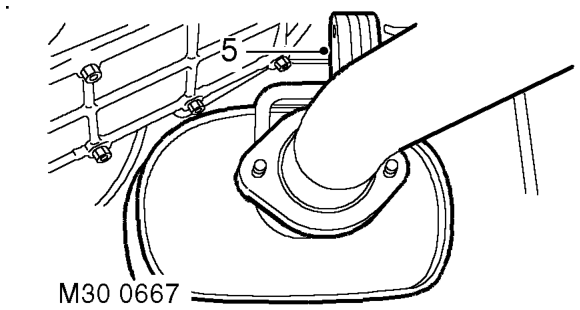

  1. Release and remove front pipe from mounting.

Refit

  1. Clean front pipe and mating faces.
  2. Position front pipe and new front pipe to turbocharger gasket. Align front pipe to intermediate pipe/silencer and turbocharger.
  3. Connect mounting to front pipe.
  4. Fit nuts securing front pipe to turbocharger and intermediate pipe/silencer and tighten to 27 Nm (20 lbf.ft) .
  5. Fit chassis cross members and tighten bolts to 25 Nm (18 lbf. ft).
