REPAIRS

Front pipe

$% 30.10.09

Remove

Front pipe – $% 30.10.09

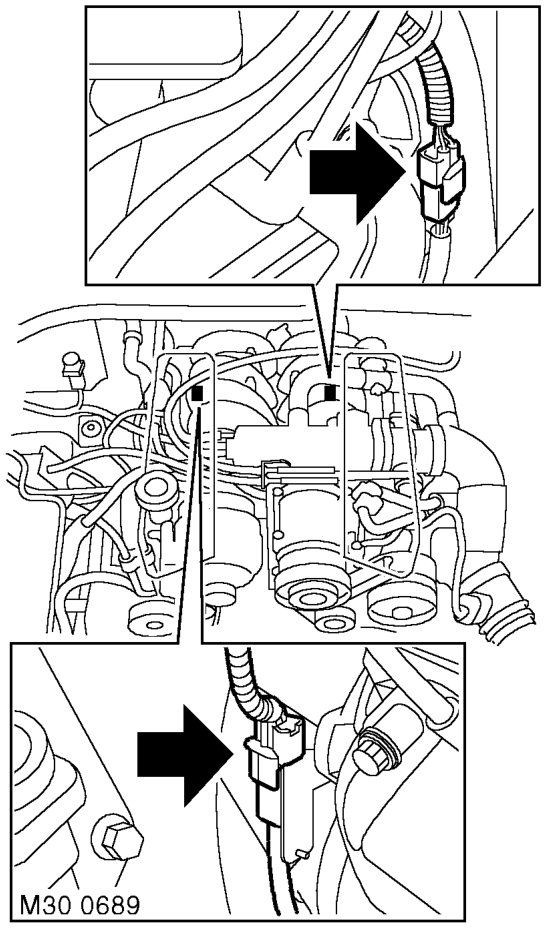

  1. Release front HO2S multiplugs from support brackets and disconnect multiplugs.
  2. Raise vehicle on ramp.
Front pipe – Raise vehicle on ramp.

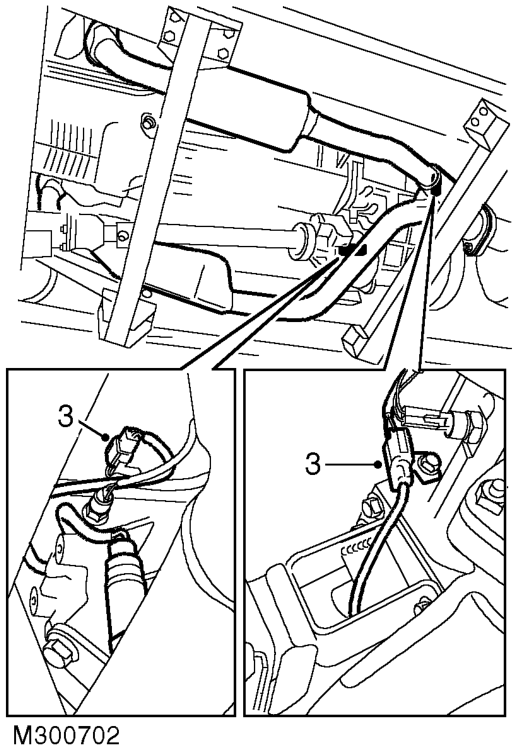

  1. Where fitted, release rear HO2S multiplugs from support brackets on transfer box and disconnect multiplugs.
Front pipe – Where fitted, release rear HO2S multiplugs from support brackets on transfer box and disco

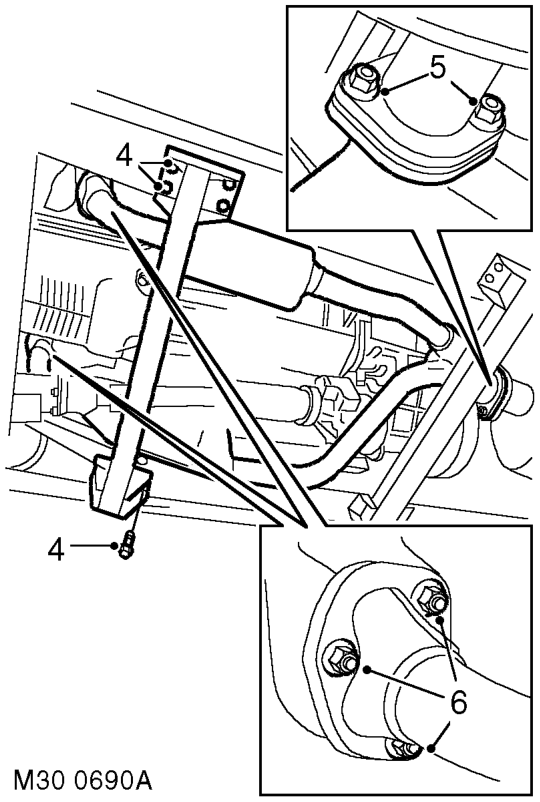

  1. Remove 8 bolts securing cross member and remove cross member.
