Land Rover Discovery II (UK)20 · Manifolds and exhaust systems - V8
20 · Engine

Gasket - exhaust manifold

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Gasket - exhaust manifold
Manifolds and exhaust systems - V8Gasket - exhaust manifold

Gasket - exhaust manifold

$% 30.15.12

This procedure is the same for both exhaust manifold gaskets.

Remove

  1. Raise front of vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Gasket - exhaust manifold – Raise front of vehicle.

Refit

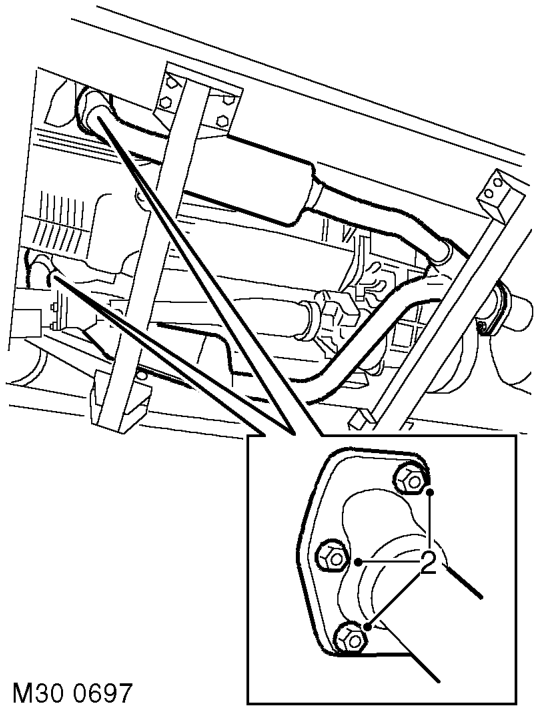

  1. Remove 3 nuts securing front pipe to exhaust manifold, release front pipe and collect gasket.
Gasket - exhaust manifold – Remove 3 nuts securing front pipe to exhaust manifold, release front pipe and collect gask

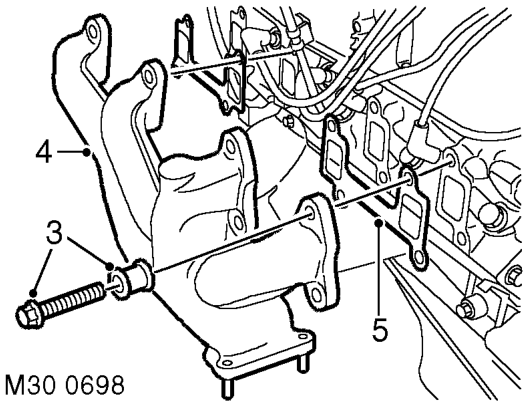

  1. Remove 8 bolts and spacers securing exhaust manifold.
  2. Remove exhaust manifold.
  3. Remove 2 manifold gaskets.
  4. Clean exhaust manifold and cylinder head mating face.
  5. Position exhaust manifold and new gaskets on cylinder head.
  6. Fit spacers and exhaust manifold securing bolts and, working from the centre outwards, tighten bolts to 38 Nm. (28 lbf.ft).
  7. Clean front pipe and manifold mating faces.
  8. Using a new gasket, position front pipe, fit nuts and tighten to 30 Nm. (22 lbf.ft).
  9. Remove stand(s) and lower vehicle.
