Repairs › Tail pipe
Manifolds and exhaust systems - V8Tail pipe

Tail pipe

$% 30.10.22

Remove

  1. Raise vehicle on ramp.

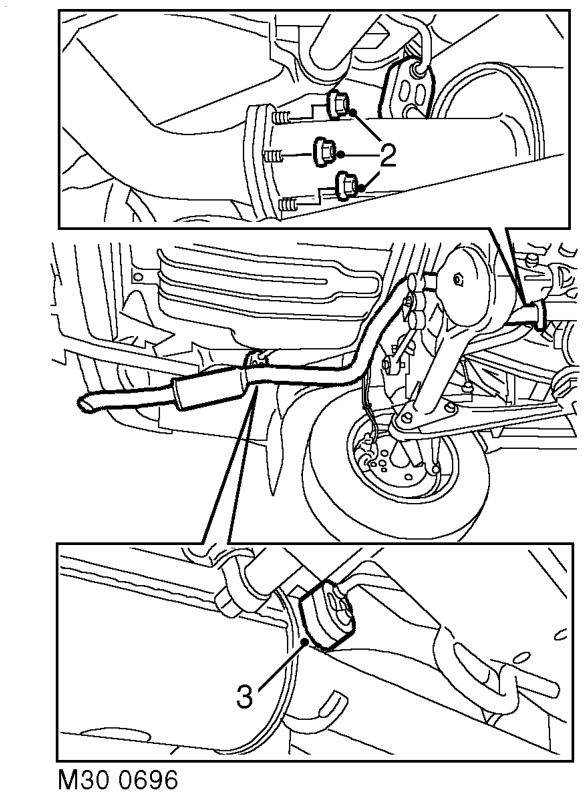

Tail pipe – Raise vehicle on ramp.
  1. Remove 3 nuts securing intermediate pipe/ silencer to tail pipe.
  2. Release and remove tail pipe from mounting.
  3. Collect intermediate pipe/silencer to tail pipe gasket.

Refit

  1. Clean silencer and tail pipe mating faces.
  2. Position tail pipe and secure on mounting.
  3. Using a new gasket, align tail pipe to intermediate pipe/silencer.
  4. Fit nuts to intermediate pipe/silencer and tighten to 25 Nm (18 lbf.ft).

Heat shield - brake servo - Without Secondary Air Injection

$% 30.10.48

Remove

  1. Release fixings and remove battery cover.
  2. Disconnect battery earth lead.

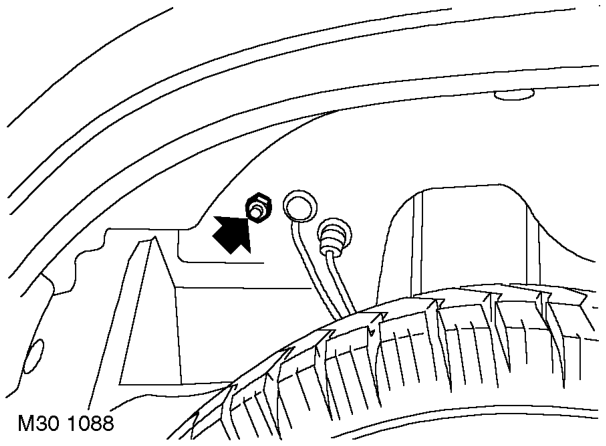

Heat shield - brake servo - without secondary air injection – Disconnect battery earth lead.
  1. Remove nut securing heat shield bracket to valance.

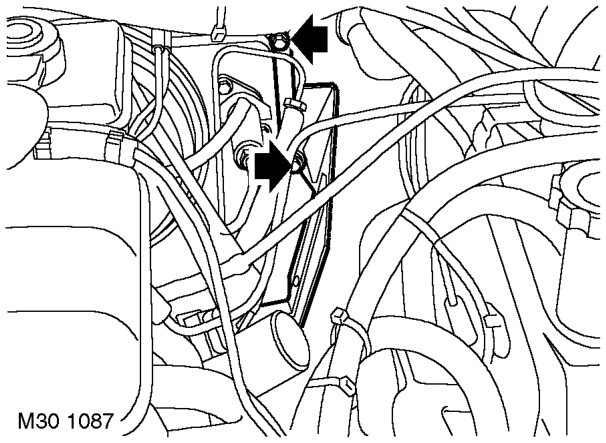

Heat shield - brake servo - without secondary air injection – Remove nut securing heat shield bracket to valance.
  1. Remove 2 bolts securing heat shield and remove heat shield.

Refit

  1. Fit heat shield, tightening bolts to 25 Nm (18 lbf.ft) and nut to 10 Nm (7 lbf.ft).
  2. Connect battery earth lead.
  3. Fit battery cover and secure with fixings.
