Housing - gear selector

_REPAIRS

Housing - gear selector

$% 37.16.37

Remove

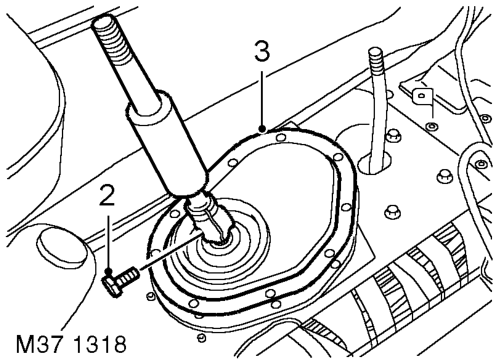

1. Remove centre console. INTERIOR TRIM COMPONENTS, REPAIRS, Console - centre - manual models.

2. Loosen pinch bolt and remove gear lever extension.

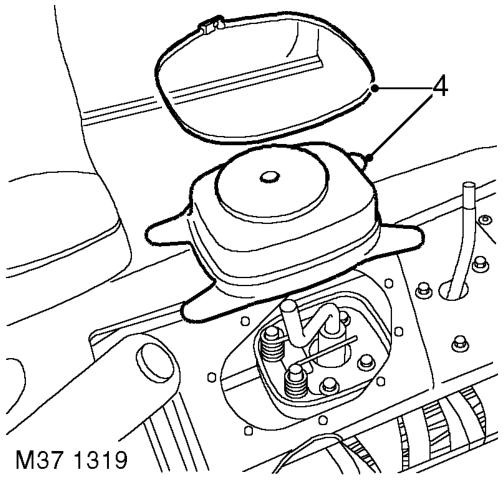

3. Drill out 9 pop rivets and remove gear lever cover plate and seal.

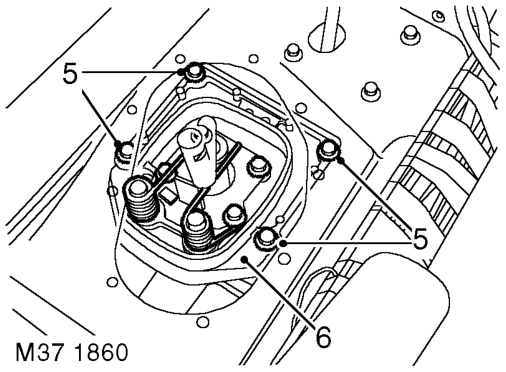

4. Remove retaining strap and remove gear lever housing rubber boot.

5. Remove 4 bolts securing gear selector housing.
6. Remove gear selector housing.

Refit

1. Clean mating faces on selector housing and gearbox.
2. Apply sealant, Part No. STC 3254 to selector housing.
3. Clean selector housing bolt threads and apply Loctite 290 to threads.

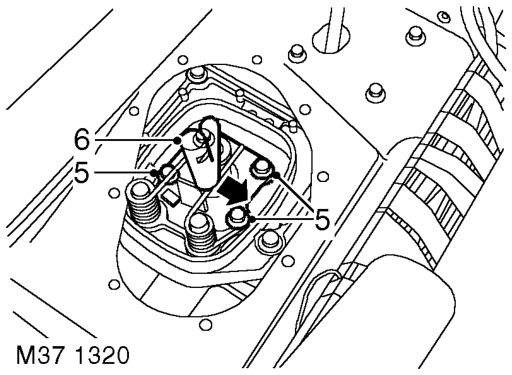

4. Position selector housing and tighten bolts to 25 Nm (18 lbf.ft).

5. Loosen bias adjustment plate bolts.
6. Select 4th gear, move lever fully to the right and tighten bias adjustment plate bolts to 25 Nm (18 lbf.ft)
7. Check adjustment is correct by selecting 3rd and 4th gears.
8. Fit gear lever housing rubber and secure with retaining strap.
9. Fit seal and cover plate and secure with pop rivets.
10. Fit gear lever extension and tighten pinch bolt to 25 Nm (18 lbf.ft).
11. Fit centre console. INTERIOR TRIM COMPONENTS, REPAIRS, Console - centre - manual models.
