Land Rover Discovery II (UK)23 · Manual gearbox - R380
23 · Transmission

Cooler - oil - gearbox - V8

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Cooler - oil - gearbox - V8
Manual gearbox - R380Cooler - oil - gearbox - V8 · page 1 of 2
  1. Release oil cooler from location on radiator, and remove the oil cooler.

CAUTION: Always fit plugs to open connections to prevent contamination.

Refit

  1. Fit oil cooler to radiator and secure with screw.
  2. Ensure connections are clean and secure hoses to cooler.
  3. Fit intercooler. ENGINE MANAGEMENT SYSTEM - Td5, REPAIRS, Intercooler.
  4. Top up gearbox oil level. MAINTENANCE, PROCEDURES, Manual gearbox.

Cooler - oil - gearbox - V8

$% 37.24.02

Remove

  1. If fitted: Remove engine oil cooler. ENGINE - V8, REPAIRS, Cooler - engine oil.

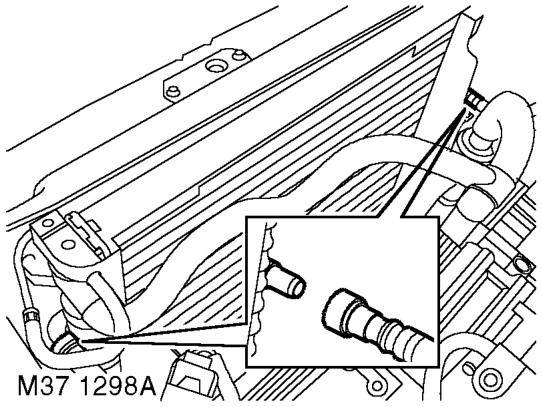

  2. Position absorbent cloth under each gearbox oil cooler hose connection to collect spillage.
Cooler - oil - gearbox - v8 – Position absorbent cloth under each gearbox oil cooler hose connection to collect spillage

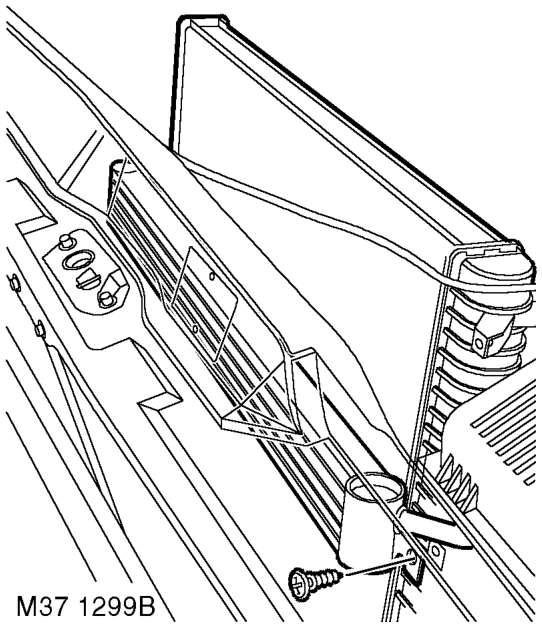

  1. Push against coupling release rings and disconnect both hoses from oil cooler.

CAUTION: Always fit plugs to open connections to prevent contamination.

Cooler - oil - gearbox - v8 – Push against coupling release rings and disconnect both hoses from oil cooler.
  1. Remove screw securing oil cooler to radiator.
  2. Release oil cooler from its location on radiator.
