Cooler - oil - gearbox - V8 (page 2 of 2)

6. Move radiator towards engine sufficiently only to release gearbox oil cooler from radiator. Switch - Reverse light
7. Remove gearbox oil cooler. CAUTION: Always fit plugs to open $% 37.27.01

connections to prevent contamination. Remove

Refit

1. Fit gearbox oil cooler to radiator, engage in location and secure with screw.
2. Ensure connections are clean and secure hoses to cooler.
3. If fitted: Fit engine oil cooler. ENGINE - V8, REPAIRS, Cooler - engine oil.
4. Top up gearbox oil. MAINTENANCE, PROCEDURES, Manual gearbox.

Refit

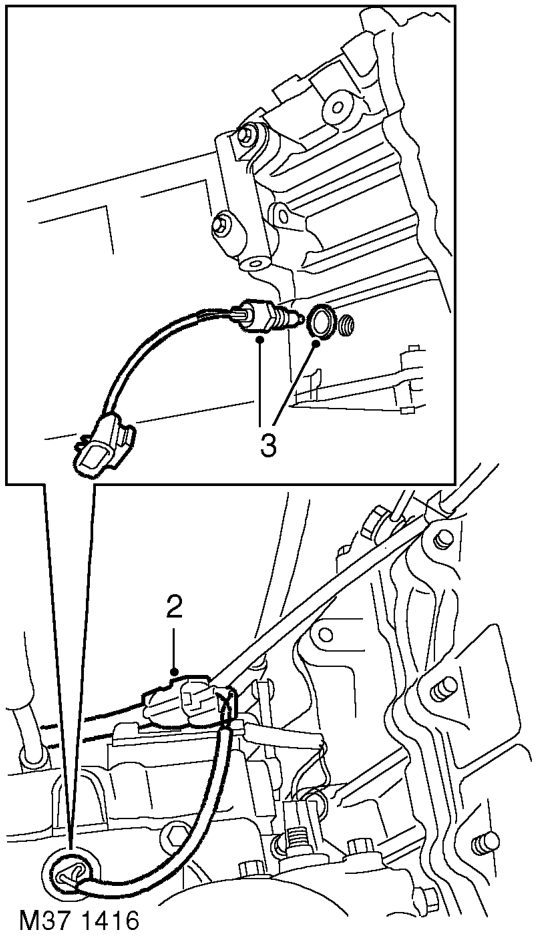

1. Raise vehicle on ramp.

2. Disconnect reverse lamp switch multiplug.
3. Remove switch and collect sealing washer.
1. Clean switch and mating face on gearbox.
2. Using a new sealing washer, fit the reverse light switch and tighten to 24 Nm (17 lbf.ft).
3. Connect switch multiplug.
4. Lower vehicle.
