OVERHAUL

Shaft - output

$% 37.20.25

Disassembly

  1. Remove gearbox selector fork - set MANUAL GEARBOX - R380, OVERHAUL, Fork - set - selector shaft.
  2. Remove gearbox front cover. MANUAL GEARBOX - R380, OVERHAUL, Cover - front.
Disassembly – Remove gearbox front cover.  MANUAL GEARBOX - R380, OVERHAUL, Cover - front.

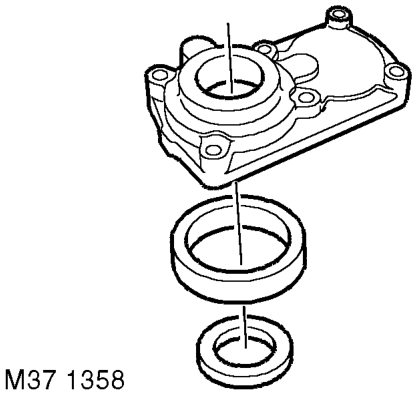

  1. Remove and discard oil seal and bearing tracks from front cover.
Disassembly – Remove and discard oil seal and bearing tracks from front cover.

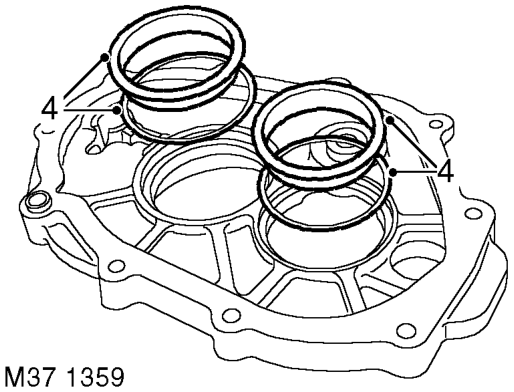

  1. Remove and discard bearing tracks from centre plate, collect selective shims.
Disassembly – Remove and discard bearing tracks from centre plate, collect selective shims.

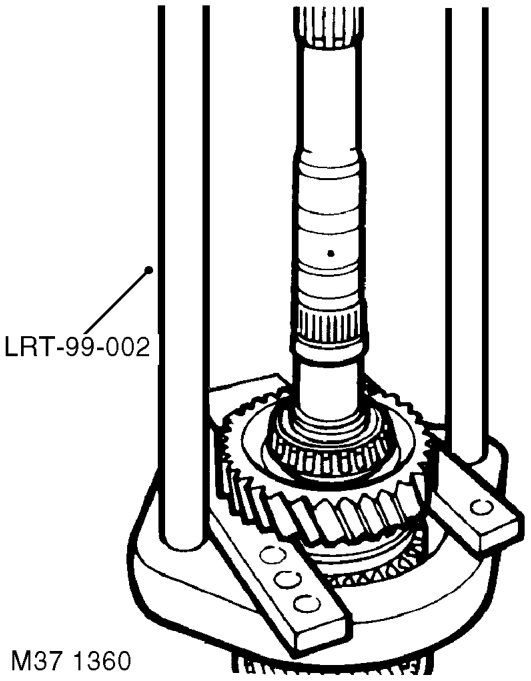

  1. Using tool LRT-99-002 and support bars under 1st gear, press output shaft bearing from output shaft.
Disassembly – Using tool LRT-99-002 and support bars under 1st gear, press output shaft bearing from out

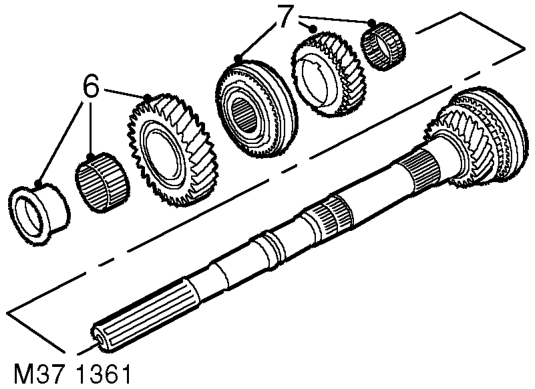

  1. Remove 1st gear, bearing collar, needle roller bearing and synchromesh rings.
  2. Noting its fitted position, remove 1st / 2nd gear synchroniser hub, 2nd gear synchromesh rings, 2nd gear and needle roller bearing.
