Lrt-37-

13. Remove 2 bolts and remove gate plate.

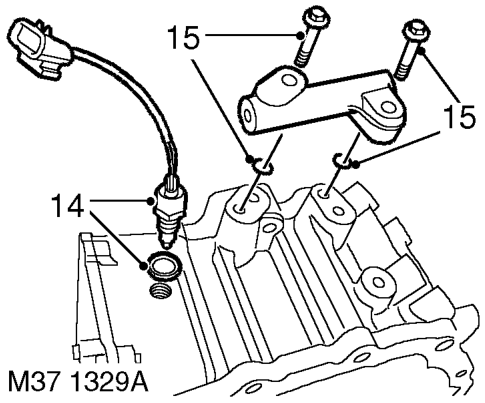

14. Remove reverse light switch and discard

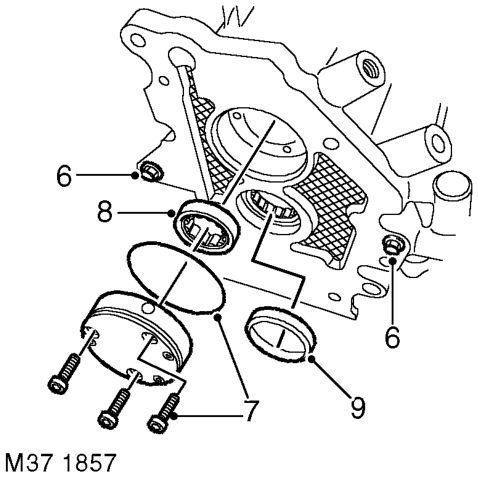

6. Fit 2 off 8x35 mm slave bolts to secure centre plate to gearbox casing. 15. Remove 2 bolts, remove oil cooler by-pass and
7. Remove 3 Torx screws, remove oil pump and discard 'O' ring.
8. Drift out layshaft support bearing. Reassembly
9. Remove and discard output shaft rear oil seal.

10. Fit output shaft support bearing and oil pick-up
11. Fit layshaft support bearing.

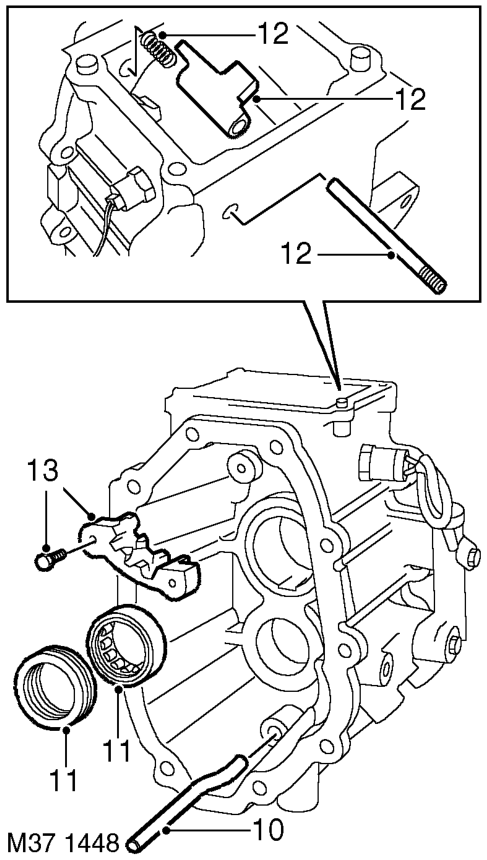

10. Remove oil pick-up pipe.
11. Drift out output shaft support bearing and oil pick-up ring.

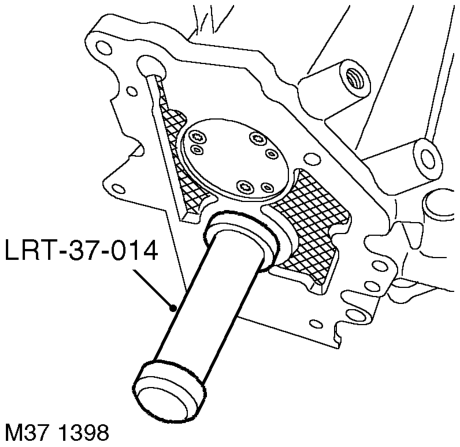

12. Remove reverse inhibitor shaft, cam and 12. Fit new output shaft oil seal using tool spring.

sealing washer.

discard 'O' rings.

1. Clean extension housing and mating faces.
2. Clean oil cooler by-pass.
3. Using new 'O' rings, fit oil cooler by-pass and tighten bolts to 15 Nm (11 lbf.ft).
4. Using new sealing washer, fit reverse light switch and tighten to 24 Nm (17 lbf.ft).
5. Fit reverse inhibitor spring and cam.
6. Clean threads of reverse inhibitor shaft and gate plate bolts.
7. Apply Loctite 290 to threads of reverse inhibitor shaft, fit and tighten shaft.
8. Apply Loctite 290 to threads of gate plate bolts.
9. Position gate plate and tighten bolts to 15 Nm (11 lbf.ft).

ring. Align tag with centre of drain slot.

LRT-37-

014.
