Land Rover Discovery II (UK)23 · Manual gearbox - R380
23 · Transmission

Extension - gearbox rear

Make
Land Rover
Model
Discovery II (UK)
Section
Overhaul › Extension - gearbox rear
Manual gearbox - R380Extension - gearbox rear

Extension - gearbox rear

$% 37.12.01

Disassembly

Disassembly – $% 37.12.01

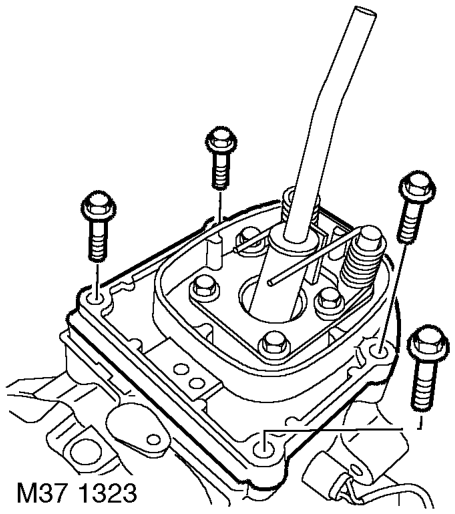

  1. Remove 4 bolts and remove gear selector housing.
Disassembly – Remove 4 bolts and remove gear selector housing.

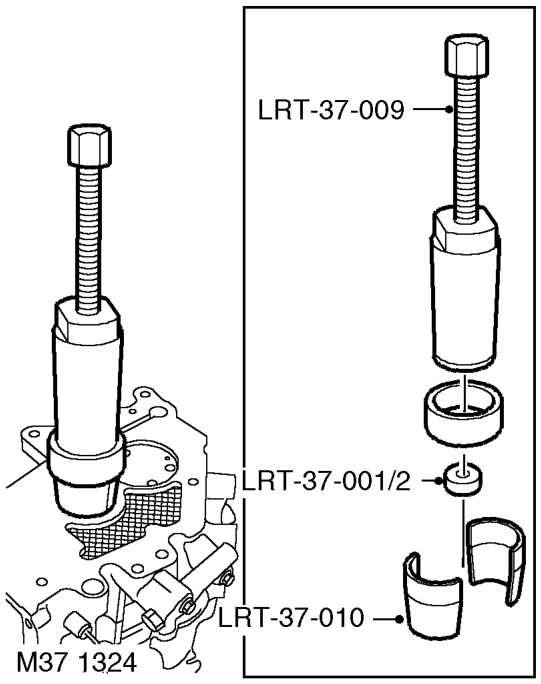

  1. Using tools LRT-37-009, LRT-37-001/2 and LRT-37-010 , remove output shaft oil seal collar.
Disassembly – Using tools LRT-37-009, LRT-37-001/2 and LRT-37-010 , remove output shaft oil seal collar.

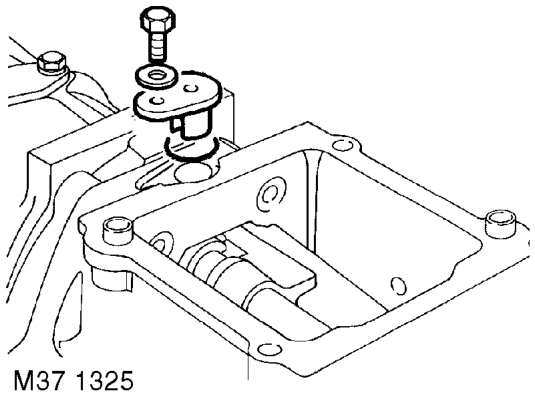

  1. Remove bolt securing interlock spool retainer and discard 'O' ring.
Disassembly – Remove bolt securing interlock spool retainer and discard 'O' ring.

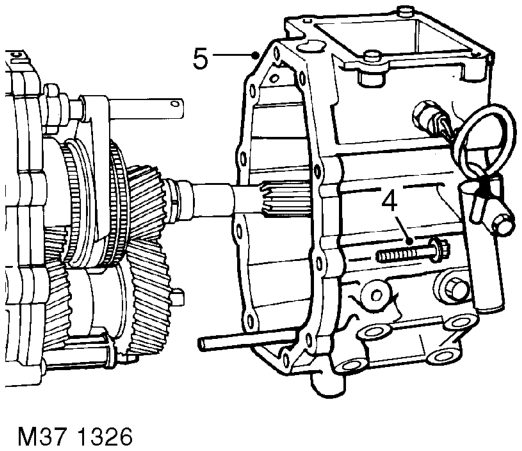

  1. Noting fitted position of 2 longest bolts, remove 10 bolts securing extension housing to gearbox.
  2. Remove extension housing from gearbox centre plate.
