Land Rover Discovery II (UK)23 · Manual gearbox - R380
23 · Transmission

Shaft - output (page 2 of 2)

Make
Land Rover
Model
Discovery II (UK)
Section
Overhaul
Manual gearbox - R380Shaft - output · page 2 of 2
Diagram

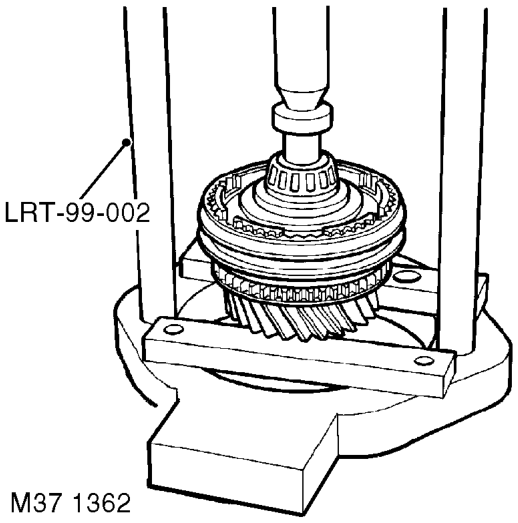

  1. Using tool LRT-99-002 and support bars under 3rd gear and press off output shaft pilot bearing.
Using tool LRT-99-002 and support bars under 3rd gear and press off output shaft pilot bea
  1. Using tool

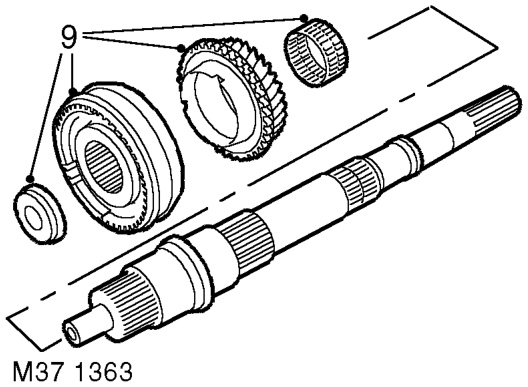

  2. Remove spacer, 3rd / 4th gear synchroniser hub, synchromesh baulk rings, 3rd gear and needle roller bearing.
  3. Remove output shaft.
  4. Using tool
Using tool

LRT-37-043 and LRT-99-002, remove taper roller bearing from input shaft.

LRT-37-043 and LRT-99-002, remove taper roller bearing from input shaft.

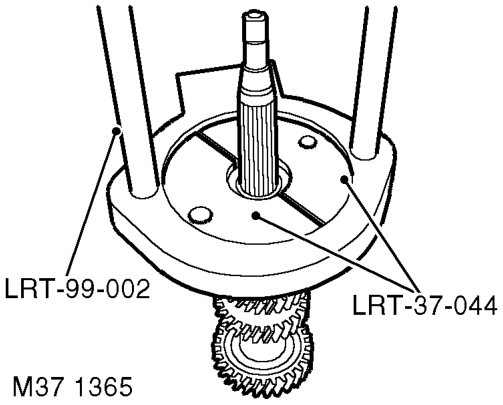

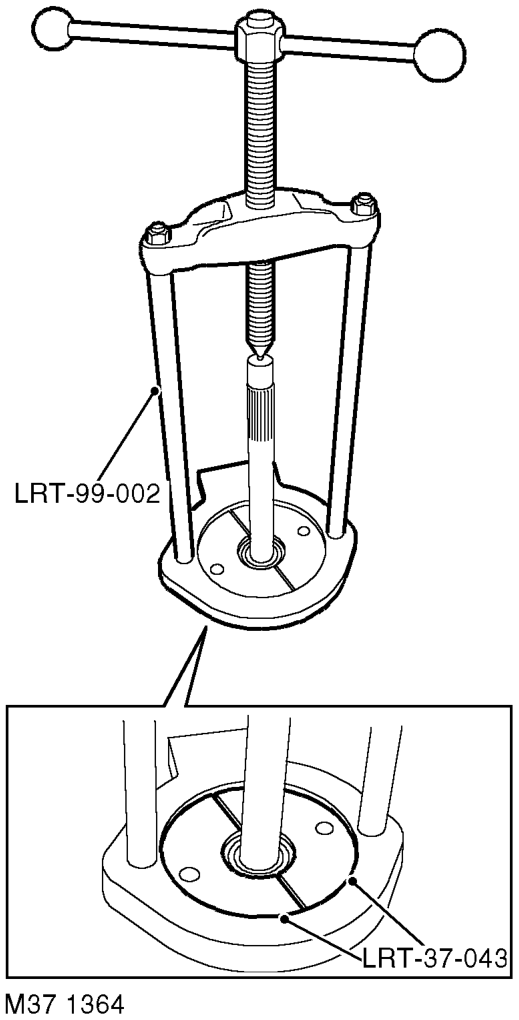

LRT-37-044 and LRT-99-002, remove bearing from splined end of layshaft.
