Cooler - engine oil

$% 12.60.68

Remove

  1. Release fixings and remove battery cover.
  2. Release fixings and remove cooling fan cowl.

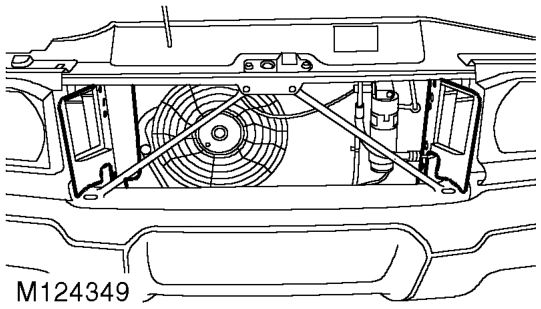

  3. Remove front grille. EXTERIOR FITTINGS, REPAIRS, Grille - front - up to 03MY.
Cooler - engine oil – Remove front grille.  EXTERIOR FITTINGS, REPAIRS, Grille - front - up to 03MY.
  1. Remove 6 scrivets and remove LH and RH air deflectors from front panel.
Cooler - engine oil – Remove 6 scrivets and remove LH and RH air deflectors from front panel.

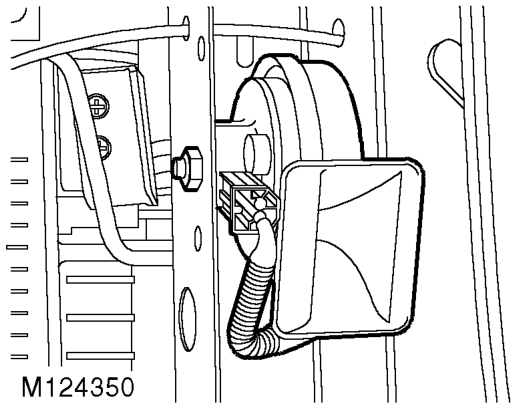

  1. Remove nut and move LH horn aside.
Cooler - engine oil – Remove nut and move LH horn aside.

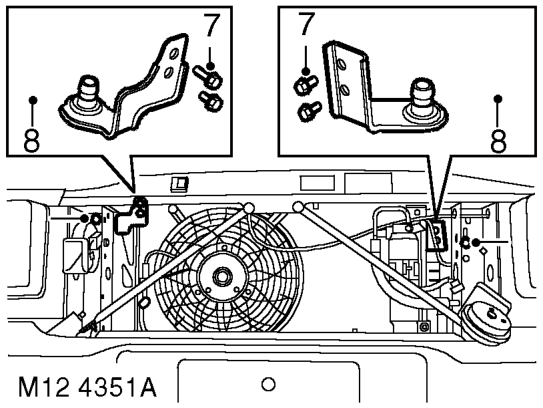

  1. Remove 2 bolts securing radiator LH and RH upper mounting brackets to body panel and remove brackets.
  2. Remove 4 screws securing air conditioning condenser LH and RH upper mounting brackets to condenser.
  3. Remove condenser upper mounting brackets with rubber mounts from radiator extension brackets.
Cooler - engine oil – Remove condenser upper mounting brackets with rubber mounts from radiator extension bracke

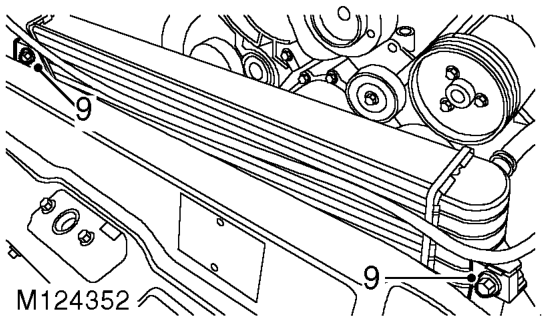

  1. Remove 2 bolts securing LH and RH extension brackets to radiator and remove brackets.
Cooler - engine oil – Remove 2 bolts securing LH and RH extension brackets to radiator and remove brackets.

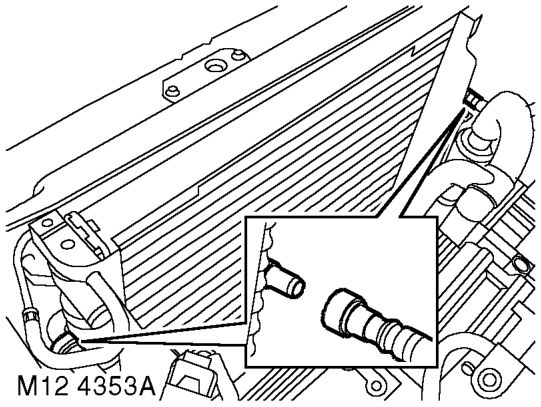

  1. Position absorbent cloth under each oil cooler hose connection to collect oil spillage.
