Engine - V8SYSTEMS - V8, REPAIRS, Front pipe. · page 1 of 2
Diagram

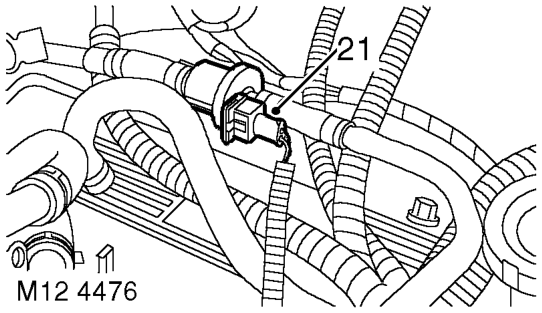

  1. Disconnect multiplug from EVAP purge valve.

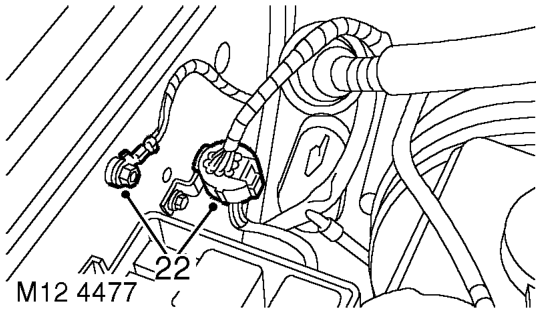

  2. Disconnect 5 multiplugs connecting engine
Disconnect 5 multiplugs connecting engine
  1. Release engine harness, pull into engine bay
  2. Raise vehicle on ramp.

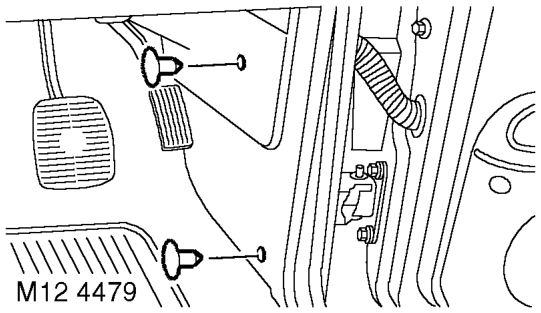

  3. Remove nut securing engine harness earth to body and disconnect engine harness to main harness multiplug.
Remove nut securing engine harness earth to body and disconnect engine harness to main har
  1. Remove trim fixings securing toe board and remove toe board.
  2. Remove 3 bolts securing oil cooling pipes to
  3. Tie oil cooling pipes aside.

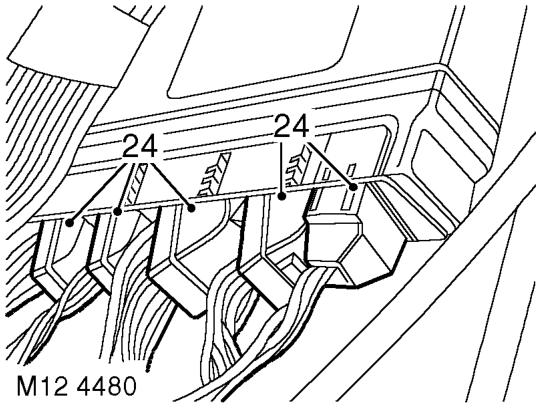

  4. Remove exhaust front pipe.
Remove exhaust front pipe.

harness to ECM.

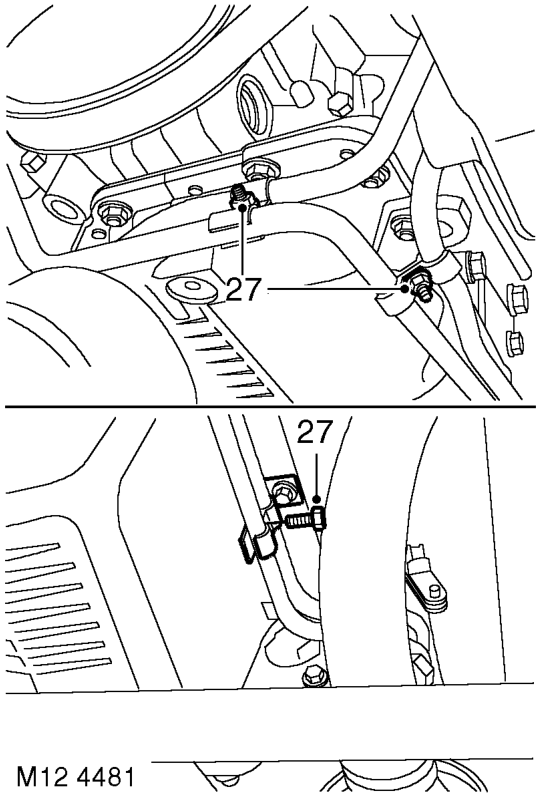

and coil on top of engine.

and coil on top of engine.

sump and remove saddle clamps.

MANIFOLDS AND EXHAUST

SYSTEMS - V8, REPAIRS, Front pipe.
