Mounting - front - LH

Refit

Mounting - front - LH

$% 12.45.01

Remove

1. Release turnbuckles and remove battery cover.
2. Disconnect battery earth lead.
3. Raise front of vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

4. Remove underbelly panel. EXTERIOR FITTINGS, REPAIRS, Panel - underbelly.

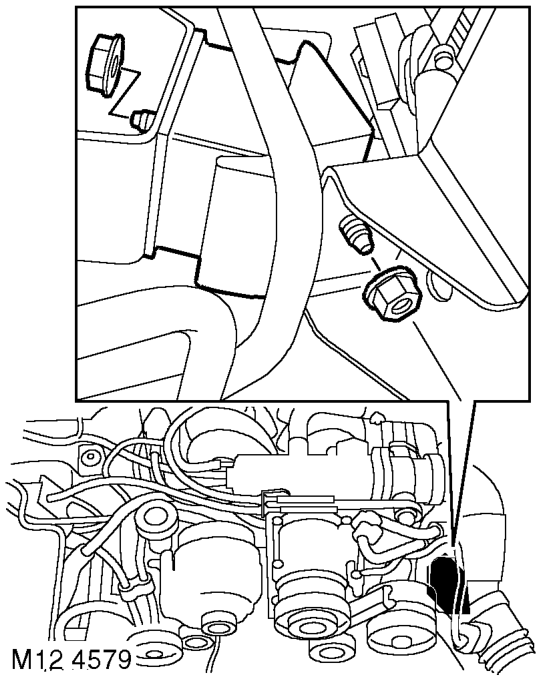

5. Position a jack beneath the sump, and support the engine on the jack.

CAUTION: To prevent damage to components, cushion the jack pad with a block of wood or hard rubber.

6. Remove 2 nuts securing engine mountings to chassis.
7. Remove nut securing LH mounting to cylinder block.
8. Raise engine sufficiently to allow engine mounting to be removed, take care not to trap any cables, pipes or harness.
9. Remove engine mounting. Collect heat shield, if fitted.
1. Fit heat shield to engine mounting, if fitted.
2. Fit engine mounting ensuring dowel is located.
3. Lower the jack and engage engine mounting studs in chassis.
4. Fit nuts securing LH engine mounting and tighten to 85 Nm (63 lbf.ft).
5. Fit underbelly panel. EXTERIOR FITTINGS, REPAIRS, Panel - underbelly.
6. Remove stand(s) and lower vehicle.
7. Connect battery earth lead.
8. Fit battery cover and secure turnbuckles.
