Land Rover Discovery II (UK)10 · Engine - V8
10 · Engine

Injection.

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Injection.
Engine - V8Injection. · page 1 of 3
  1. LH drive models: Fit brake servo heat shield. MANIFOLDS AND EXHAUST Gasket - cylinder head - RH SYSTEMS - V8, REPAIRS, Heat shield - brake servo - Without Secondary Air

$% 12.29.03

Injection.

  1. Fit engine harness bolt and tighten to 22 Nm

Remove

(16 lbf.ft).

  1. Connect ht leads to spark plugs in their correct fitted order.
  2. Fit inlet manifold gasket. MANIFOLDS AND EXHAUST SYSTEMS - V8, REPAIRS, Gasket - inlet manifold - lower.
  3. Remove inlet manifold gasket. MANIFOLDS AND EXHAUST SYSTEMS - V8, REPAIRS, Gasket - inlet manifold - lower.
Injection. – Remove inlet manifold gasket.  MANIFOLDS AND EXHAUST SYSTEMS - V8, REPAIRS, Gasket - inle

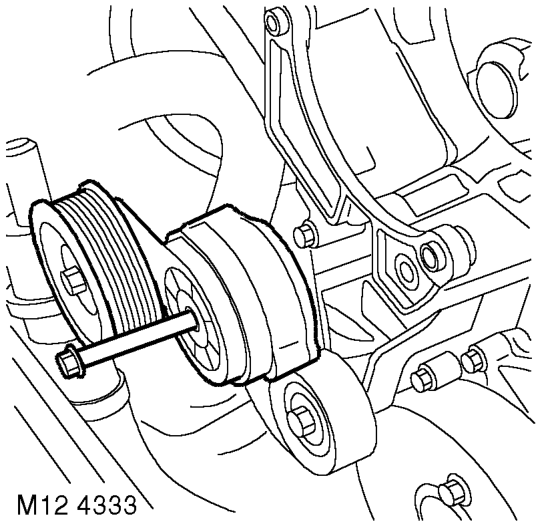

  1. Remove bolt securing auxiliary drive belt tensioner and remove tensioner.
Injection. – Remove bolt securing auxiliary drive belt tensioner and remove tensioner.

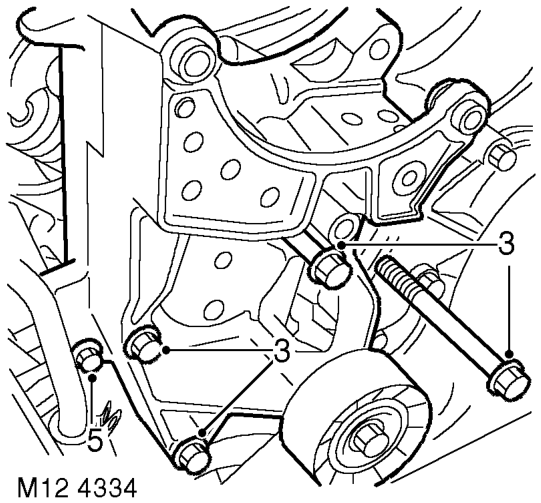

  1. Remove 4 bolts securing alternator mounting bracket and remove bracket.
  2. Noting their fitted order, disconnect ht leads from spark plugs.
  3. Remove bolt securing engine earth lead.
