Mounting - rear - LH

$% 12.45.07

Remove

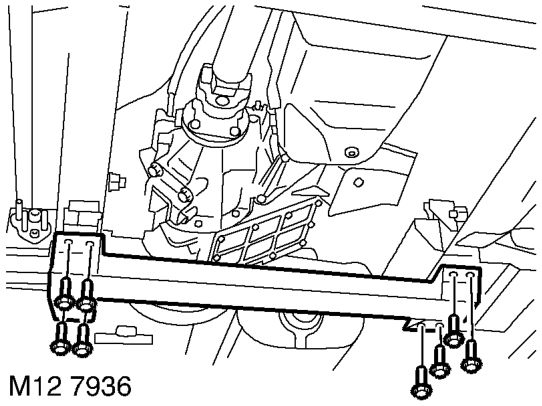

  1. Raise vehicle on lift.
Mounting - rear - lh – Raise vehicle on lift.
  1. Remove 8 bolts securing rear cross member and remove cross member.
  2. Remove heat shield, if fitted.
  3. Support transfer gearbox on jack.

CAUTION: To prevent damage to Refit components, cushion the jack pad with a block of wood or hard rubber.

Mounting - rear - lh – Support transfer gearbox on jack.

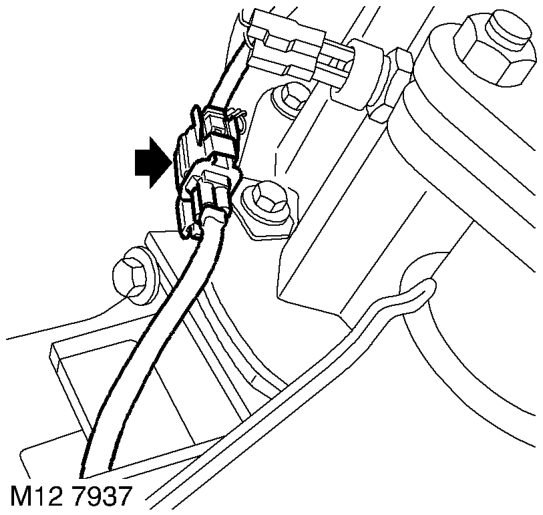

  1. Release and disconnect HO2S multiplug.
Mounting - rear - lh – Release and disconnect HO2S multiplug.

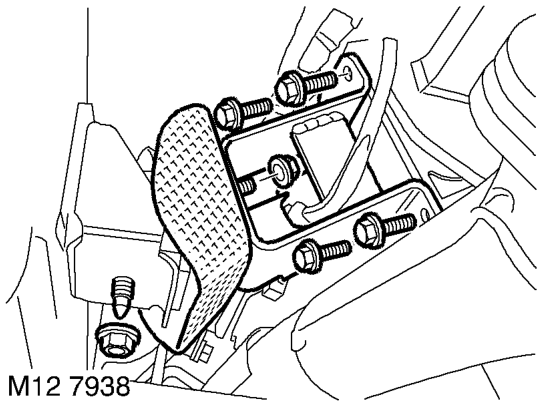

  1. Remove nut securing mounting to body bracket.
  2. Remove nut securing mounting to mounting bracket.
  3. Remove 4 bolts securing mounting bracket to gearbox.
  4. Remove mounting and mounting bracket assembly.
  5. Remove mounting rubber.
  6. If fitted position heatshield, fit mounting rubber to mounting bracket, fit nut but do not tighten.
  7. Position mounting bracket assembly, fit bolts securing mounting bracket to gearbox and tighten to 85 Nm (63 lbf.ft).
  8. Fit nut securing mounting to body bracket and tighten to 48 Nm (35 lbf.ft).
  9. Tighten nut securing mounting to gearbox bracket to 48 Nm (35 lbf.ft).
  10. Connect HO2S multiplug and secure to support bracket.
  11. Position rear cross member, fit bolts and tighten to 26 Nm (19 lbf.ft).
  12. Lower vehicle.
