Engine - V8Engine assembly · page 1 of 2

Engine assembly

$% 12.41.01.99

Remove

  1. Drain engine oil and remove oil filter.
  2. Remove radiator. COOLING SYSTEM - V8, REPAIRS, Radiator.
  3. Remove upper inlet manifold. MANIFOLDS AND EXHAUST SYSTEMS - V8, REPAIRS, Gasket - inlet manifold - upper - Without Secondary Air Injection.
  4. Remove ignition coil assemblies.
  5. Position absorbent material to catch spillage and disconnect fuel pipe from fuel rail.

CAUTION: Always fit plugs to open connections to prevent contamination.

  1. Release 2 hose clips and remove top hose.
Engine assembly – Release 2 hose clips and remove top hose.

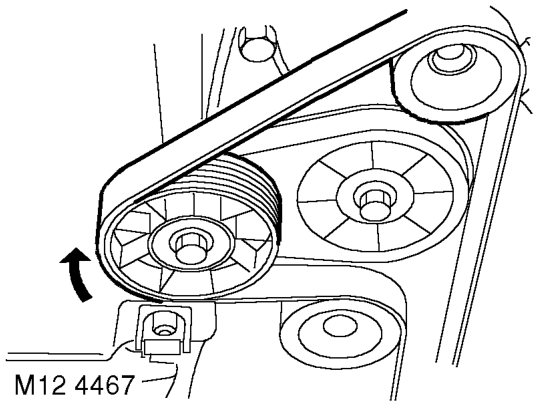

  1. Using a 15 mm spanner, release auxiliary drive belt tension and remove drive belt.

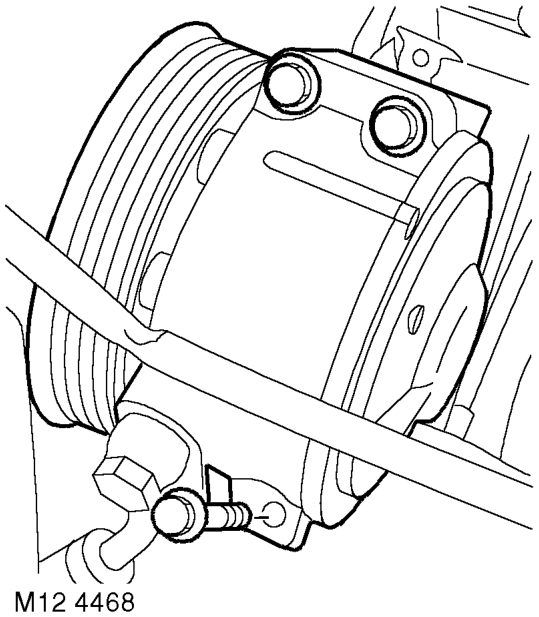

  2. Remove 4 bolts securing A/C compressor,
Engine assembly – Remove 4 bolts securing A/C compressor,

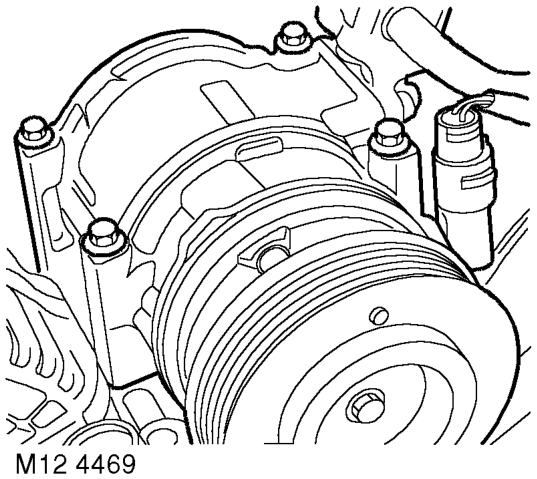

  1. Remove 3 bolts securing ACE pump, release pump and tie aside.
Engine assembly – Remove 3 bolts securing ACE pump, release pump and tie aside.
  1. Disconnect multiplug from A/C compressor.

release compressor and tie aside.
