Panel - underbelly

Panel - underbelly

$% 76.10.50

Remove

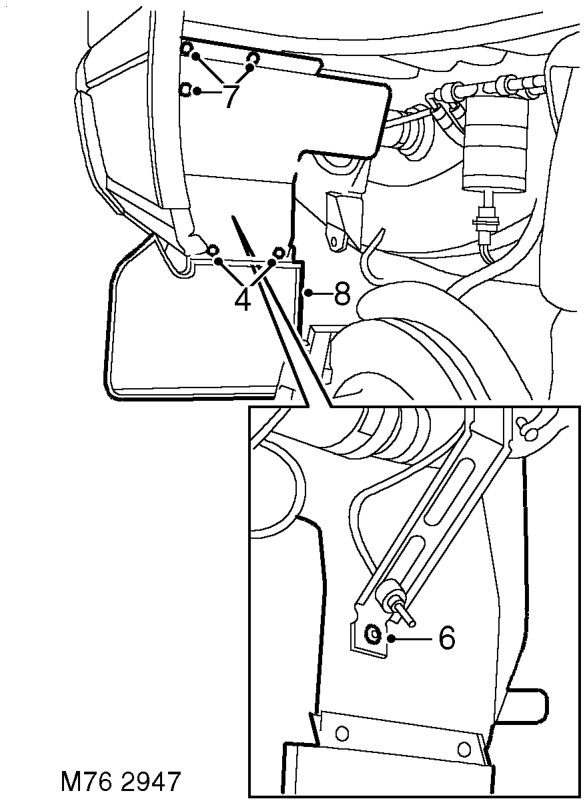

4. Drill out 2 rivets securing mud flap to wheel arch liner.
5. Remove mud flap.
6. Drill out rivet securing wheel arch liner to support bracket.
7. Drill out 3 rivets securing wheel arch liner to body.
8. Remove wheel arch liner.

Refit

1. Position wheel arch liner to vehicle and secure to body with rivets.
2. Fit rivet securing wheel arch liner to support

Refit

bracket.

3. Fit mud flap to wheel arch liner and secure with rivets.
4. Fit rear bumper side section to body and secure with screws.
5. Fit trim clips securing mud flaps to side section.
1. Raise front of vehicle, support underbody and lower front axle

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

2. Remove nut securing drag link to drop arm.

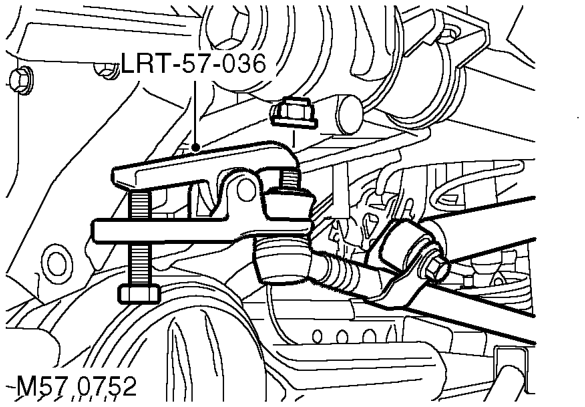

3. Using tool LRT-57-036 break taper joint and release drag link from drop arm.
4. Remove nut and bolt securing steering damper to chassis and remove damper.
5. Remove 7 screws securing underbelly panel.
6. Remove underbelly panel.
7. Remove 7 studs securing sound deadening to underbelly panel.
8. Remove sound deadening.
1. Position sound deadening to underbelly panel and secure with studs.
2. Fit underbelly panel and secure with screws.
3. Position steering damper, fit nut and bolt and tighten to 125 Nm (92 lbf.ft)
4. Fit drag link to drop arm and tighten nut to 80 Nm (59 lbf.ft).
5. Lower front of vehicle.
