Cable - bonnet release - from 03MY

Cable - bonnet release - from 03MY

$% 76.16.29

Remove

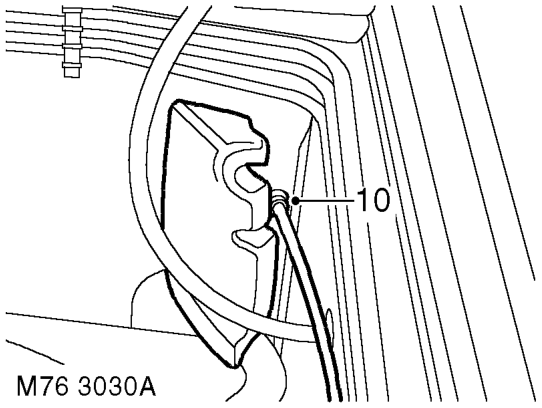

10. Remove grommet from engine bulkhead.
11. Tie a draw string to end of bonnet release cable in passenger compartment.
12. Pull bonnet release cable, from bonnet lock end, until whole of cable is released.
13. Untie draw string from bonnet release cable and remove cable.
14. Remove grommet from cable.

Refit

1. Fit grommet to bonnet release cable.
2. Tie draw string to passenger compartment end of bonnet release cable.
3. Use draw string to pull bonnet release cable into position.
4. Fit grommet to engine bulkhead.
5. Untie draw string from bonnet release cable.
6. Position bonnet release lever assembly and connect bonnet release cable to lever.
7. Fit release lever assembly to body and tighten nuts to 10 Nm (7 lbf.ft) .
8. Connect bonnet release cable to lock.
9. With assistance, operate bonnet release lever and check for correct operation of lock.
10. Fit fascia closing panel and secure with fasteners.
11. Fit bonnet lock shield and secure with rivets.
12. Position headlamp to body, connect multiplugs and fit headlamp to sockets.
13. Fit front grille. EXTERIOR FITTINGS, REPAIRS, Grille - front - up to 03MY.
1. Remove the front grille. EXTERIOR FITTINGS, REPAIRS, Grille - front - from 03MY.

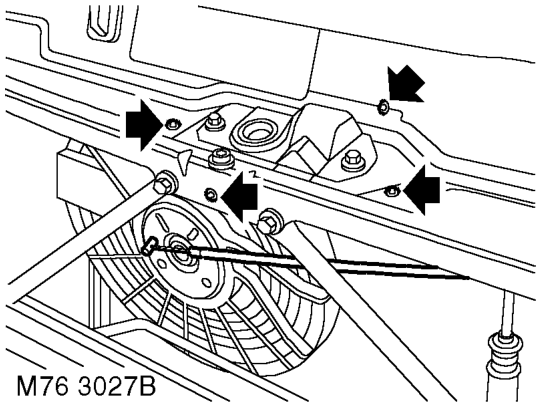

2. Drill out 4 rivets securing bonnet lock shield to the bonnet locking platform and remove the shield.
3. Disconnect bonnet release cable from the bonnet lock.

M76 4573

4. Disconnect bonnet release cable from the front panel retaining clip.
