Bonnet

Bonnet

$% 76.16.01.99

Remove

Refit

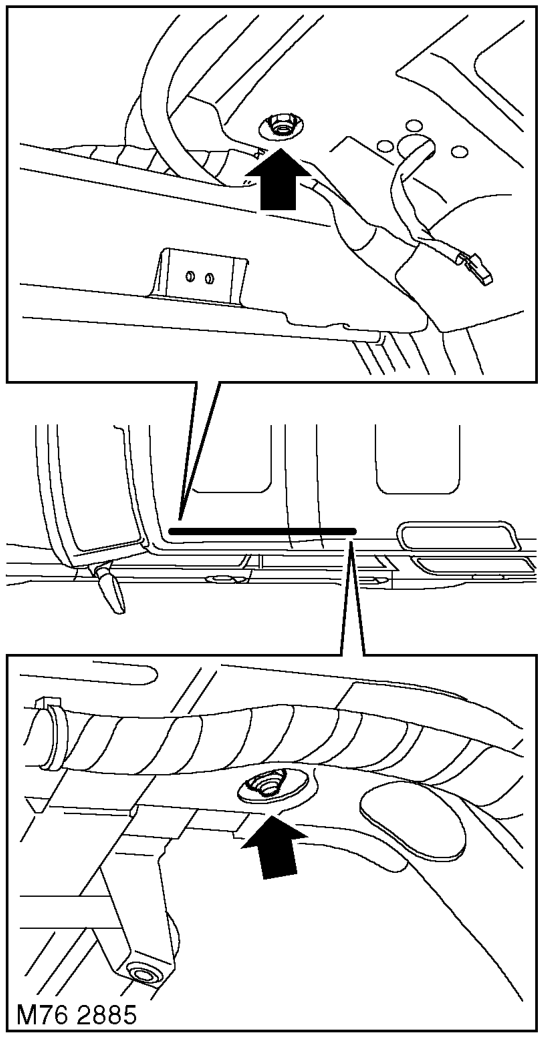

6. Remove 2 nuts securing each roof bar to roof.
7. Remove roof bars and collect foam pads from each end.

Refit

1. Fit roof bars to roof, ensuring foam pads are correctly located.
2. Fit nuts securing roof bars to roof and tighten to 32 Nm (24 lbf.ft).
3. Models with rear A/C: Fit upper side ducts and secure with rivets.
4. Models with rear A/C: Fit rear centre duct and secure with rivets.
5. Fit headlining. INTERIOR TRIM COMPONENTS, REPAIRS, Headlining.

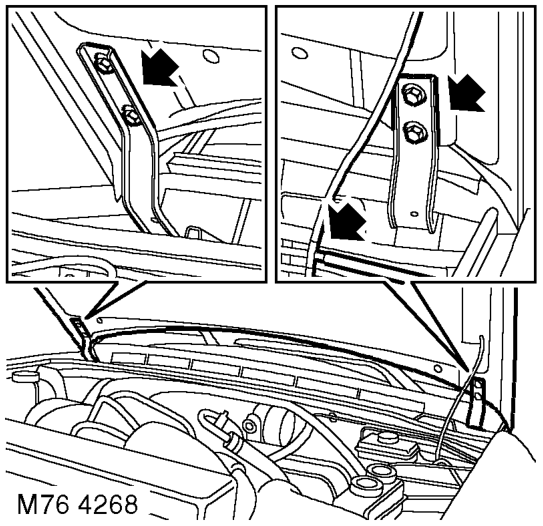

1. Support bonnet in open position.

2. Fit protection covers to wings and mark hinge outline on bonnet if bonnet is to be refitted.
3. Disconnect windscreen washer tube at elbow joint.
4. With assistance, remove bolts securing hinges to bonnet and remove bonnet.
1. With assistance, position bonnet to hinges. Fit and lightly tighten bolts.
2. Connect windscreen washer tube.
3. Close bonnet. Check that bonnet is aligned to both front wings and that gaps are equal. If necessary, adjust bonnet alignment and/or gaps.
4. Finally tighten hinge bolts to 25 Nm (18 lbf.ft).
