Mirror - exterior - electric

Mirror - exterior - electric

$% 76.10.57

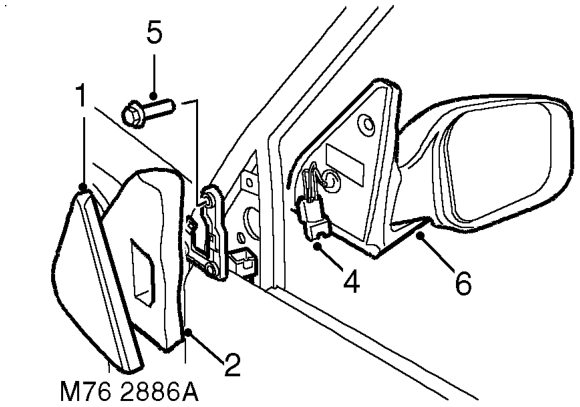

Remove

1. Release cheater panel from front door.
2. Remove anti-rattle foam pad from front door.
3. Release mirror multiplug from mounting plate.
4. Disconnect multiplug from mirror.
5. Remove 3 bolts securing mirror to door.
6. Remove mirror and collect mounting plate.

Refit

1. Fit mirror and mounting plate to door.
2. Fit bolts securing mirror to door and tighten to 4 Nm (3 lbf.ft).
3. Connect multiplug to mirror.
4. Secure multiplug to mounting plate.
5. Fit anti-rattle foam pad to front door.
6. Secure cheater panel to front door.

Roof bars

$% 76.11.31

Remove

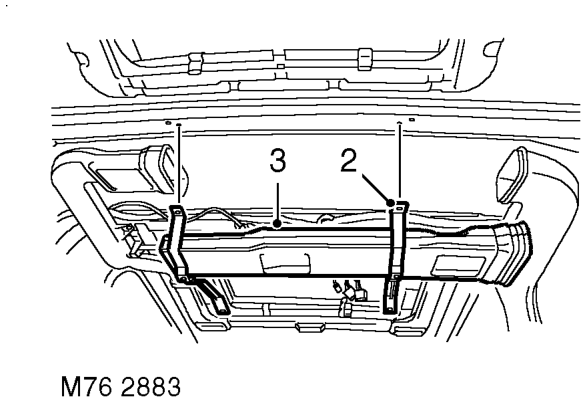

1. Remove headlining. INTERIOR TRIM COMPONENTS, REPAIRS, Headlining.

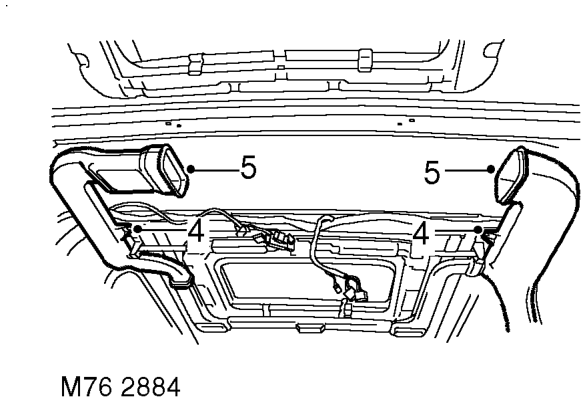

2. Models with rear A/C: Drill out 4 rivets securing rear centre duct to roof.
3. Models with rear A/C: Release and remove rear centre duct.

4. Models with rear A/C: Drill out 2 rivets securing each upper side duct to roof.
5. Models with rear A/C: Remove upper side ducts.
