Wing - front - from 03MY

Wing - front - from 03MY

$% 76.10.24

Remove

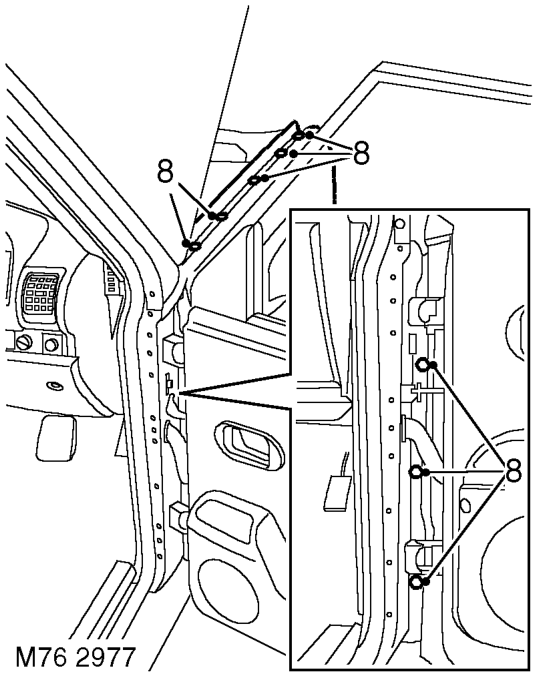

8. Remove 8 bolts securing wing to body and remove wing.

Refit

1. Position wing to body.
2. Connect side repeater lamp to multiplug and fit to wing.
3. Position wing to body, align wing to bonnet and front door so that the correct gaps are achieved and tighten bolts to 17 Nm (13 lbf.ft).
4. Check alignment of wing to bonnet and front door. If necessary, adjust wing to achieve correct gaps.
5. Fit and tighten nut securing wing to bracket on sill finisher to 17 Nm (13 lbf.ft).
6. Fit and tighten screw securing wing to headlamp surround panel.
7. Fit and tighten bolt securing front of wing to bracket on body to 17 Nm (13 lbf.ft).
8. Fit wheel arch liner extension to bumper and secure with screws.
9. Fit front wheel arch liner. EXTERIOR FITTINGS, REPAIRS, Liner - wheel arch - front.
10. Fit front repeater lamp. LIGHTING, REPAIRS, Lamp - front repeater.
1. Remove the headlamp assembly. LIGHTING, REPAIRS, Headlamp - from 03MY.

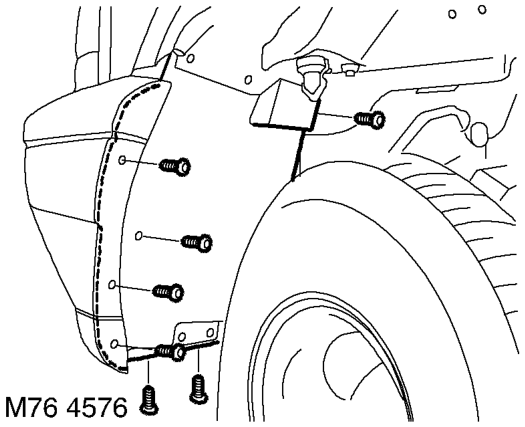

2. Remove the front wheel arch liner. EXTERIOR FITTINGS, REPAIRS, Liner - wheel arch - front.

3. Remove screw securing wheel arch liner extension panel to the inner wing.
4. Remove 6 screws securing wheel arch liner extension panel to the front bumper and remove the extension panel.

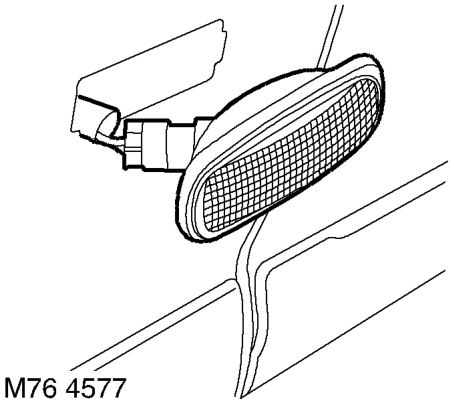

5. Release side repeater lamp from front wing, disconnect the multiplug and remove the lamp.
