Headlamp - up to 03MY

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Headlamp - up to 03MY
LightingHeadlamp - up to 03MY

Headlamp - up to 03MY

$% 86.40.49

Remove

  1. For RH headlamp: Release fixings and remove battery cover.

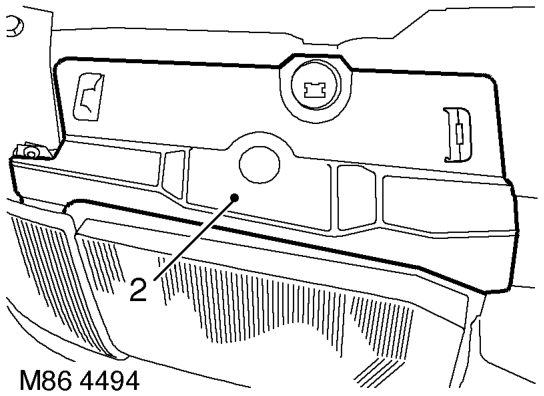

Headlamp - up to 03my – For RH headlamp: Release fixings and remove battery cover.
  1. Remove headlamp access cover from body.

Refit

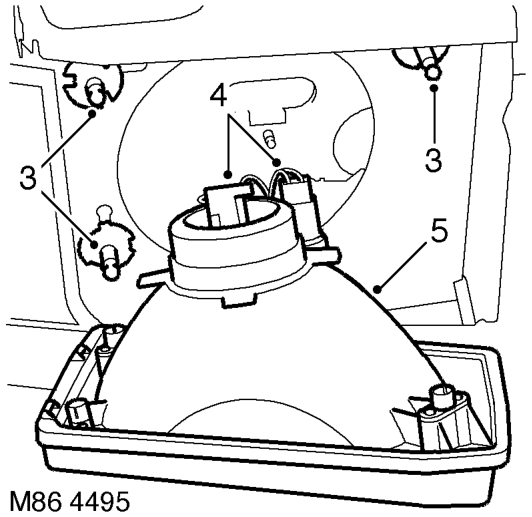

Headlamp - up to 03my – Remove headlamp access cover from body.
  1. Release headlamp from locating sockets.
  2. Disconnect multiplugs from headlamp and side lamp bulbs.
  3. Remove headlamp. NOTE: Do not carry out further dismantling if component is removed for access only.

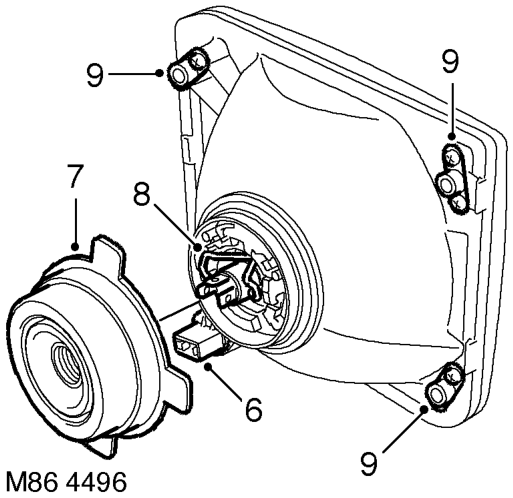

Headlamp - up to 03my – Remove headlamp. NOTE: Do not carry out further dismantling if component is removed for ac
  1. Remove side lamp bulb holder from headlamp.
  2. Remove rubber cover from headlamp.
  3. Release headlamp bulb retaining clip and remove headlamp bulb.
  4. Remove 6 screws and remove headlamp retaining sockets.
  5. Fit retaining sockets to new headlamp and secure with screws.
  6. Fit headlamp bulb and secure with clip.
  7. Fit rubber cover.
  8. Fit side lamp bulb holder.
  9. Position headlamp and connect multiplugs.
  10. Fit headlamp onto locating pins.
  11. Check headlamp beam alignment. LIGHTING, ADJUSTMENTS, Headlamps beam alignment - up to 03MY.
  12. Fit headlamp access cover.
  13. For RH headlamp: Fit battery cover and secure with fixings.
