Repairs › Lamp - stop - centre high mounted Lamp - tail/flasher - bumper (CHMSL)
LightingLamp - stop - centre high mounted Lamp - tail/flasher - bumper (CHMSL)

Lamp - stop - centre high mounted Lamp - tail/flasher - bumper (CHMSL)

$% 86.41.42 $% 86.41.32 Remove

Remove

Lamp - stop - centre high mounted lamp - tail/flasher - bumper (chmsl) – $% 86.41.42 $% 86.41.32 Remove

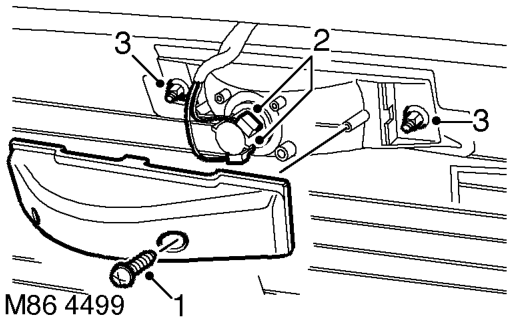

  1. Remove 2 screws securing lamp cover and remove cover.
  2. Disconnect Lucar connectors from lamp bulb holder.
  3. Remove 2 nuts securing lamp to rear screen Refit and remove lamp.

Refit

  1. Fit new lamp to screen and secure with nuts.
  2. Connect Lucar connectors to lamp bulb holder.
  3. Fit lamp cover to lamp and secure with screws.
Lamp - stop - centre high mounted lamp - tail/flasher - bumper (chmsl) – Fit lamp cover to lamp and secure with screws.

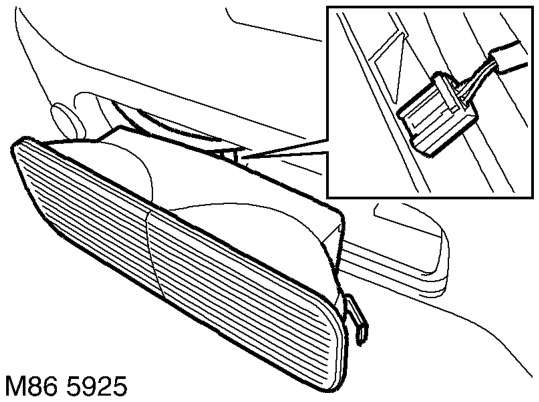

  1. Release tail lamp from bumper.
  2. Disconnect multiplug and remove lamp.
  3. Position tail lamp, connect multiplug and secure lamp to bumper.
