Headlamp - from 03MY

Headlamp - from 03MY

$% 86.40.49

Remove

1. Remove front grille. EXTERIOR FITTINGS, REPAIRS, Grille - front - from 03MY.

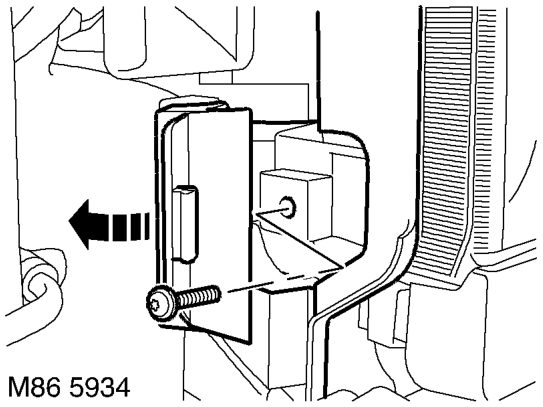

2. Protect bumper.

CAUTION: Always protect paintwork when removing or refitting any body trims or bumpers.

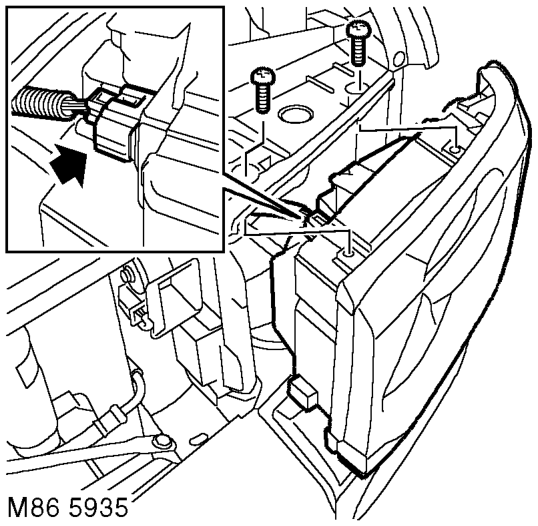

3. Open air deflector access panel and remove Torx screw securing headlamp assembly to the front panel.

4. Remove 2 screws securing headlamp assembly to the bonnet locking platform.
5. Release headlamp assembly from wing, disconnect multiplug and remove the headlamp assembly. NOTE: Do not carry out further dismantling if component is removed for access only.

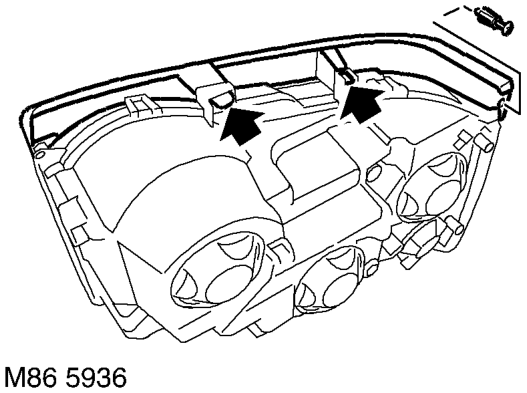

6. Remove scrivet securing headlamp finisher to headlamp assembly, release and remove the finisher.

Refit

1. Fit and secure headlamp finisher to the headlamp assembly.
2. Position headlamp assembly to front panel and connect the multiplug.
3. Secure headlamp assembly to the front wing.
4. Fit and tighten screws securing headlamp assembly to the bonnet locking platform.
5. Fit and tighten Torx screw securing headlamp assembly to the front panel. Close the air deflector access panel.
6. Remove bumper protection.
7. Fit front grille. EXTERIOR FITTINGS, REPAIRS, Grille - front - from 03MY.
8. Check headlamp alignment - adjust if necessary. LIGHTING, ADJUSTMENTS, Headlamps beam alignment - from 03MY.
