Socket - accessory Switch - front/rear fog lamps

Socket - accessory Switch - front/rear fog lamps

$% 86.65.62 $% 86.65.65

Remove Remove

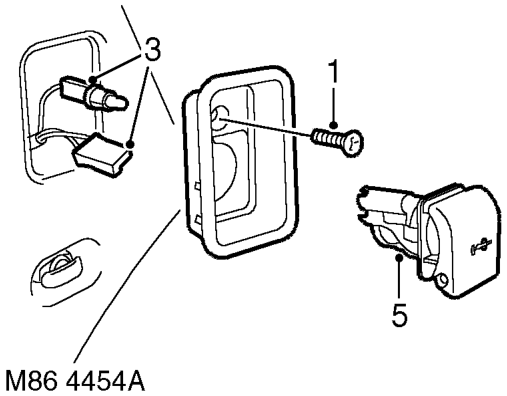

1. Remove screw securing accessory socket escutcheon to loadspace side trim casing.
2. Release accessory socket assembly from trim casing.
3. Disconnect multiplug and bulb from accessory socket.
4. Remove accessory socket. Refit
5. Release bulb holder from accessory socket. Release accessory socket from escutcheon.

Refit

1. Fit accessory socket to escutcheon.
2. Fit bulb holder to accessory socket.
3. Position accessory socket to trim casing and connect multiplug and bulb.
4. Fit accessory socket to trim casing and secure with screw.

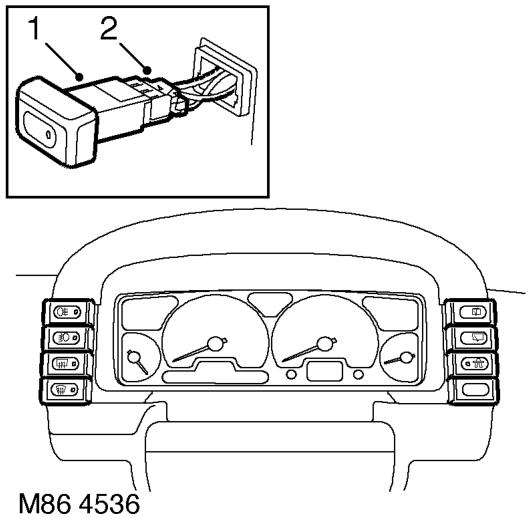

1. Carefully remove switch from instrument cowl.
2. Disconnect multiplug and remove switch.
1. Position switch and connect multiplug.
2. Carefully push switch into instrument cowl.
