Lamp - interior - front

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Lamp - interior - front
LightingLamp - interior - front

Lamp - interior - front

$% 86.45.09

Introduction

This procedure is also applicable for removal and fitting of the loadspace lamp.

Remove

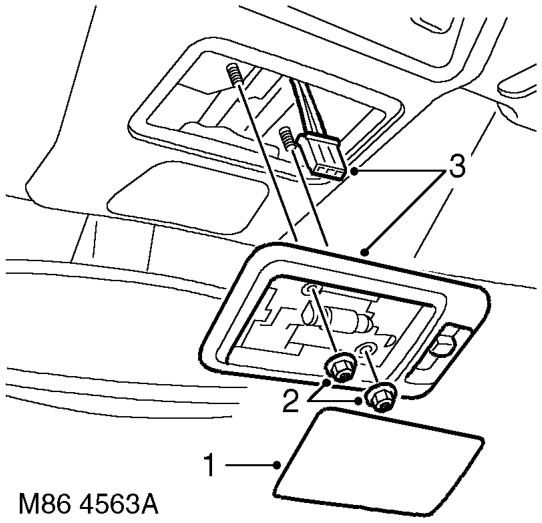

Introduction – This procedure is also applicable for removal and fitting of the loadspace lamp.
  1. Remove interior lamp lens.
  2. Remove two nuts securing lamp.
  3. Release lamp and disconnect multiplug.
  4. Remove lamp.

Refit

  1. Position new lamp and connect multiplug.
  2. Fit lamp and secure with nuts.
  3. Fit interior lamp lens.

Lamp - interior - rear

$% 86.45.18

Remove

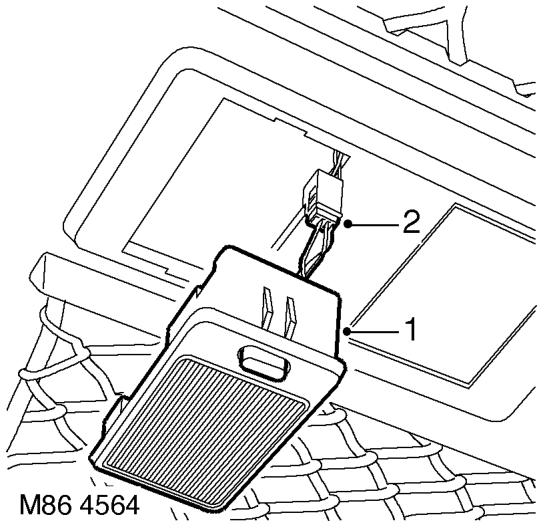

Lamp - interior - rear – $% 86.45.18
  1. Release lamp from headlining.
  2. Disconnect multiplug and remove lamp.

Refit

  1. Position interior lamp and connect multiplug.
  2. Fit lamp to headlining.
