Land Rover Discovery II (UK)49 · Lighting
49 · Electrical

Lamp - tail Lamp - front fog up to 03MY

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Lamp - tail Lamp - front fog up to 03MY
LightingLamp - tail Lamp - front fog up to 03MY

Lamp - tail Lamp - front fog up to 03MY

$% 86.40.70 $% 86.40.95

Remove Remove

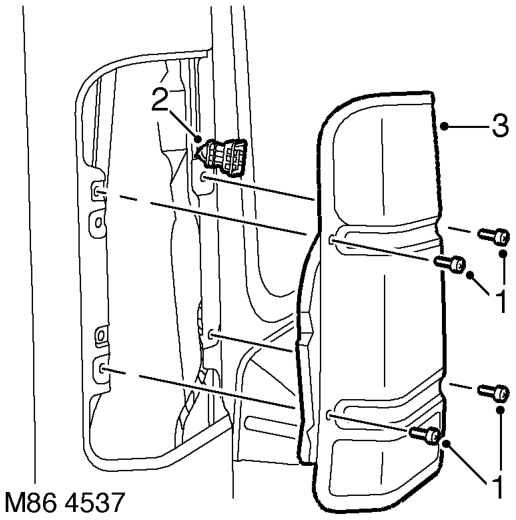

Remove remove – $% 86.40.70 $% 86.40.95
  1. Remove 4 screws securing tail lamp to body.
  2. Disconnect multiplug from tail lamp.
  3. Remove tail lamp.

Refit

  1. Position tail lamp to body and connect multiplug.
  2. Secure tail lamp to body with screws.
  3. Raise front of vehicle, one side.

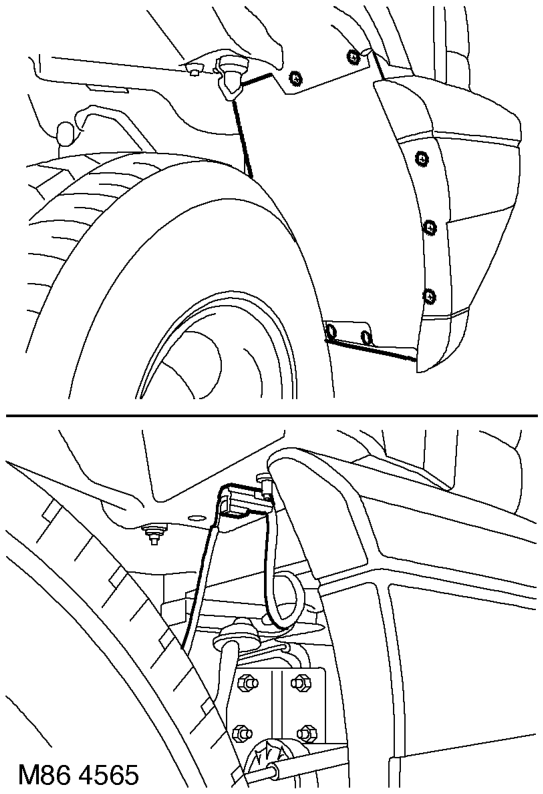

Remove remove – Raise front of vehicle, one side.
  1. For RH lamp: Remove 7 screws securing wheel arch liner extension to liner and bumper valance and remove liner extension. Disconnect lamp multiplug from harness.
  2. For LH lamp:Remove front bumper assembly. EXTERIOR FITTINGS, REPAIRS, Bumper assembly - front.
