Rheostat - panel lights dimmer

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Rheostat - panel lights dimmer
LightingRheostat - panel lights dimmer

Rheostat - panel lights dimmer

$% 86.65.37

Remove

Rheostat - panel lights dimmer – $% 86.65.37

Refit

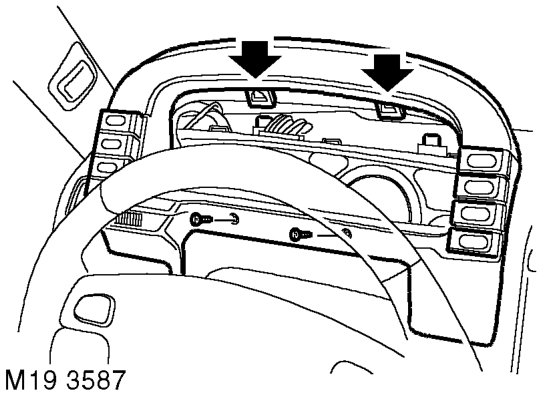

  1. Remove 2 screws securing instrument cowl to fascia and release the cowl from the retaining clips.
Rheostat - panel lights dimmer – Remove 2 screws securing instrument cowl to fascia and release the cowl from the retaining

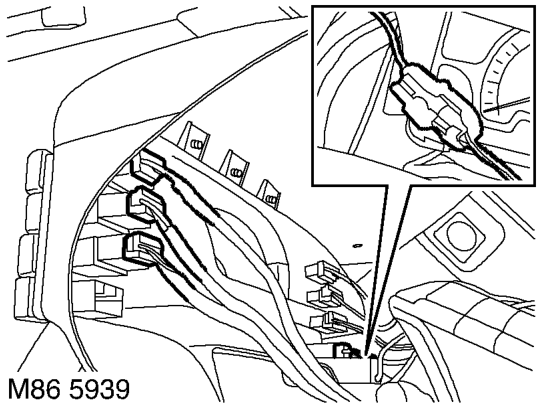

  1. Disconnect 8 multiplugs from the instrument cowl switches.
  2. Remove the instrument cowl.
Rheostat - panel lights dimmer – Remove the instrument cowl.

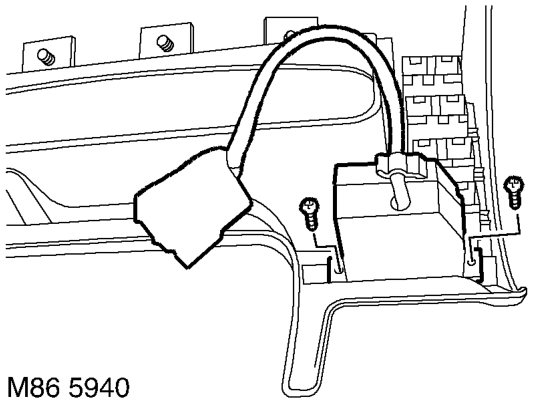

  1. Remove 2 screws securing the dimmer switch to the instrument cowl and remove the dimmer switch.
  2. Fit the dimmer switch to the instrument cowl and secure with screws.
  3. Position the instrument cowl to the fascia and connect the multiplugs.
  4. Fit the instrument cowl to the fascia and secure with screws.
