LightingLamp - front repeater

REPAIRS

Lamp - front repeater

$% 86.40.42

Remove

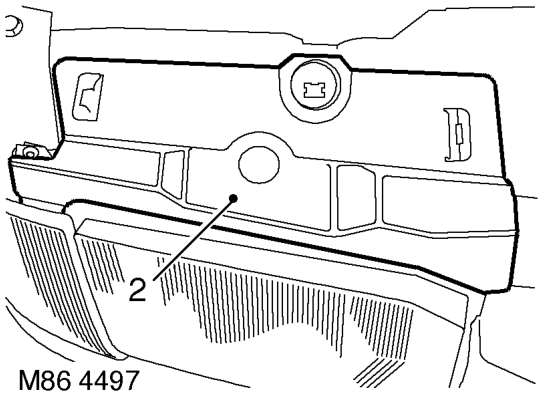

  1. For RH repeater lamp: Release fixings and remove battery cover.
Lamp - front repeater – For RH repeater lamp: Release fixings and remove battery cover.
  1. Remove headlamp access cover from body.
Lamp - front repeater – Remove headlamp access cover from body.

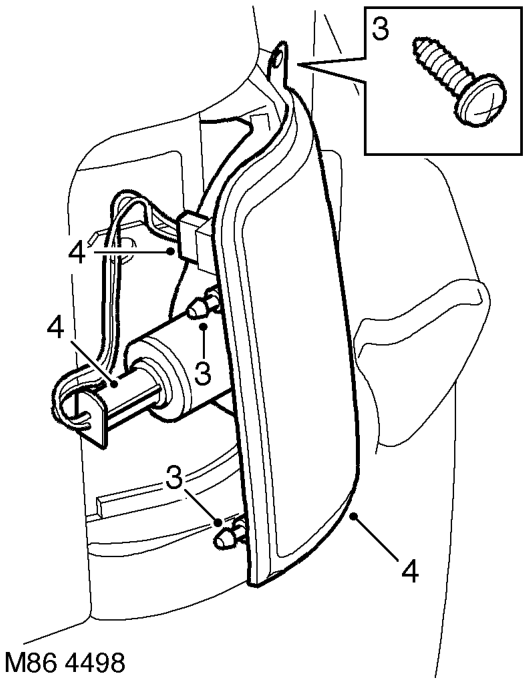

  1. Remove screw securing repeater lamp to body and release lamp from 2 locating peg sockets in wing.
  2. Disconnect 2 multiplugs from repeater lamp and remove lamp.

Refit

  1. Position new repeater lamp and connect multiplugs.
  2. Fit repeater lamp to body and tighten screw.
  3. Fit headlamp access cover.
  4. For RH repeater lamp: Fit battery cover and secure fixings.
