Liner - wheel arch - front

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Liner - wheel arch - front
Exterior fittingsLiner - wheel arch - front

Liner - wheel arch - front

$% 76.10.48

Remove

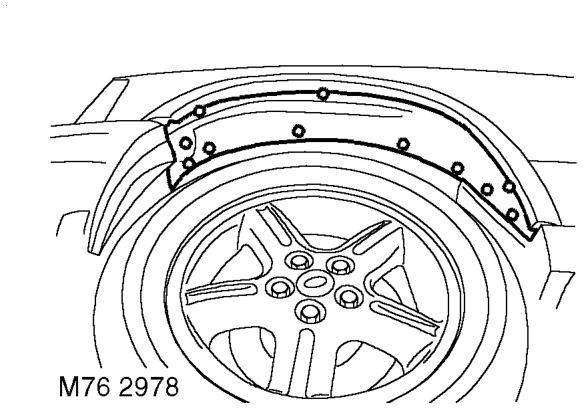

Liner - wheel arch - front – $% 76.10.48
  1. Remove 3 screws securing wheel arch liner to wing.
  2. Remove 2 screws securing wheel arch liner to wheel arch liner extension.
  3. Remove centres of 6 trim clips securing wheel arch liner to body.
  4. Remove outers of trim clips.
  5. Remove wheel arch liner.

Refit

  1. Position wheel arch liner to body.
  2. Fit trim clip outers to liner.
  3. Fit centres to trim clips.
  4. Fit and tighten screws securing wheel arch liner to wing and wheel arch liner extension.

Liner - wheel arch - rear

$% 76.10.49

Remove

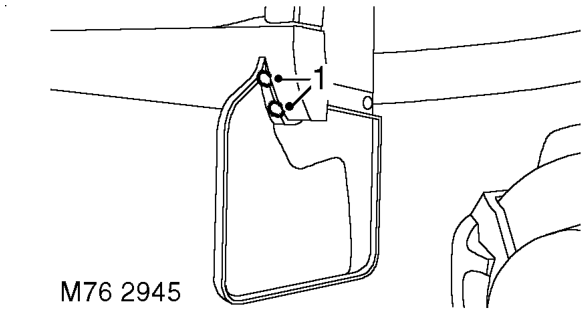

Liner - wheel arch - rear – $% 76.10.49
  1. Remove 2 trim clips securing rear mud flap to bumper side section.

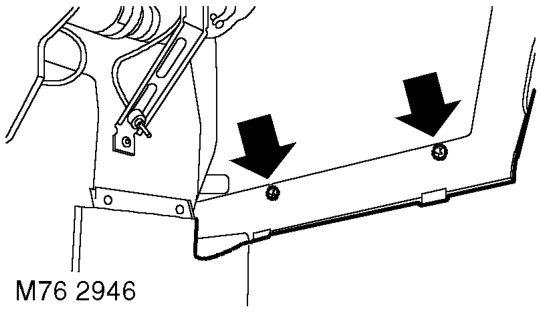

Liner - wheel arch - rear – Remove 2 trim clips securing rear mud flap to bumper side section.
  1. Remove 2 screws securing bumper side section to body.
  2. Remove bumper side section.
