Bumper assembly - front

M76 3029B

5. Remove 2 nuts securing bonnet release lever to the 'A' post.
6. Disconnect bonnet release cable from the bonnet release lever.

M76 4574

7. Remove bonnet release cable grommet from the bulkhead.
8. Remove the bonnet release cable.
9. Remove grommet from the bonnet release cable.

Refit

1. Fit grommet to the bonnet release cable.
2. Position bonnet release cable to body and connect to the bonnet release lever.
3. Position bonnet release lever to 'A' post, fit nuts and tighten to 10 Nm (7 lbf.ft).
4. Fit bonnet release cable grommet to the bulkhead.
5. Connect bonnet release cable to the bonnet lock.
6. Secure bonnet release cable to the front panel retaining clip.
7. With assistance operate bonnet release lever and check for the correct operation of the lock.
8. Fit bonnet lock shield and secure with rivets
9. Fit the front grille. EXTERIOR FITTINGS, REPAIRS, Grille - front - from 03MY.

Bumper assembly - front

$% 76.22.08

Remove

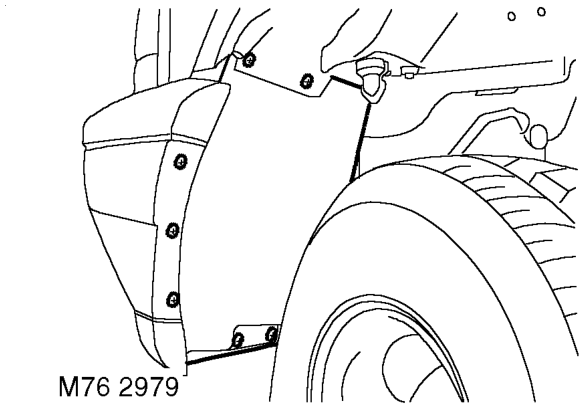

1. Remove 14 screws securing LH and RH wheel arch liner extensions to wheel arch liners and bumper valance and remove extensions. Note: 18 screws are used on 03 MY onwards.

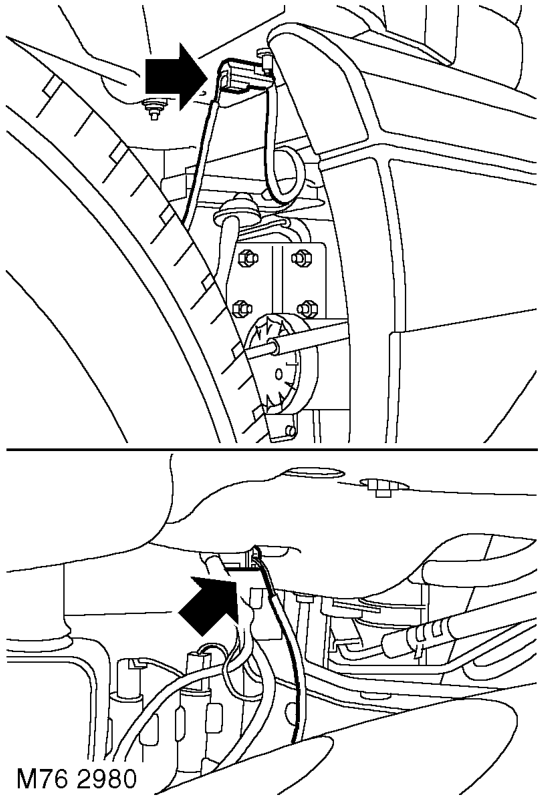

2. Disconnect multiplugs from fog lamps.
