Bumper assembly - rear - from 03MY

Bumper assembly - rear - from 03MY

$% 76.22.15

Remove

3. Remove 2 nuts securing bumper valance side mountings to body.
4. Remove 4 nuts securing bumper to crush cans and remove bumper from body.

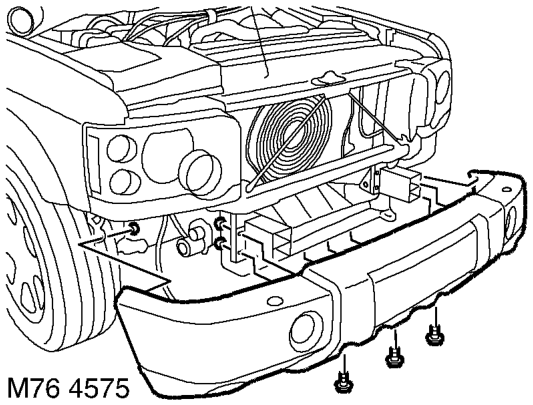

5. Remove 3 screws securing bumper to front cross bar.

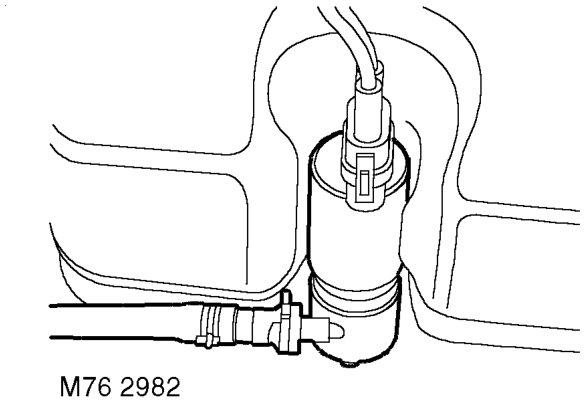

6. Models with headlamp wash: Position container to collect screen washer fluid and disconnect hose from headlamp washer pump.

Refit

1. Models with headlamp wash: Connect hose to headlamp washer pump. Refill washer reservoir with fluid.
2. With assistance position bumper to body.
3. Fit and tighten 3 screws securing bumper to front cross bar.
4. Tighten nuts securing bumper to crush cans to 13 Nm (10 lbf.ft).
5. Tighten nuts securing bumper to side mountings to 13 Nm (10 lbf.ft).
6. Connect multiplugs to fog lamps.
7. Fit wheel arch liner extensions and secure with screws.
1. Remove both rear tail lamps. LIGHTING, REPAIRS, Lamp - tail/ flasher - bumper.

M76 4566

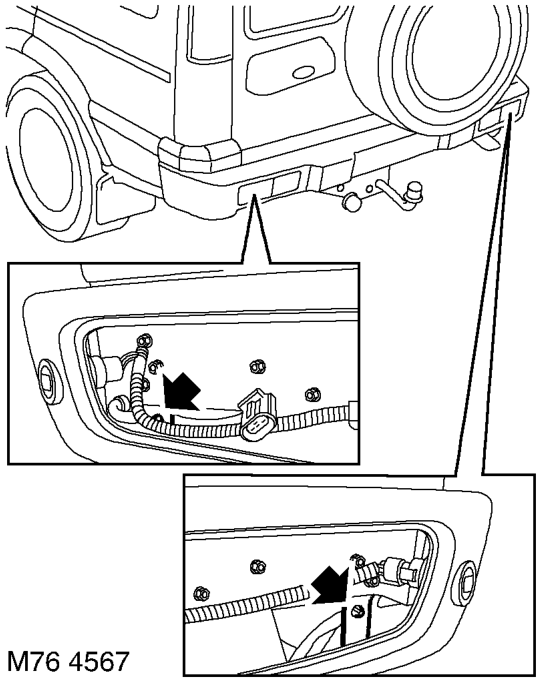

2. Disconnect park distance control harness multiplug.

3. Release rear lamp harness clips.
