5. Release coolant rail from inlet manifold and discard 'O' ring.
6. Remove nuts securing alternator cables and release cables from alternator.

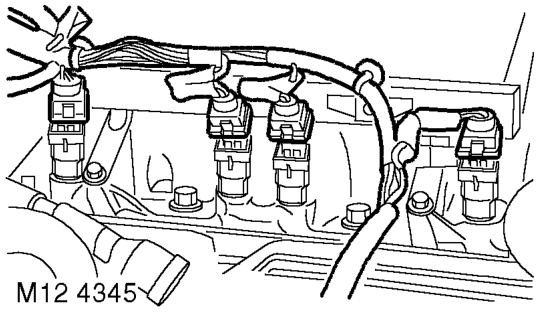

7. Disconnect multiplugs from RH bank of injectors and release harness from fuel rail.

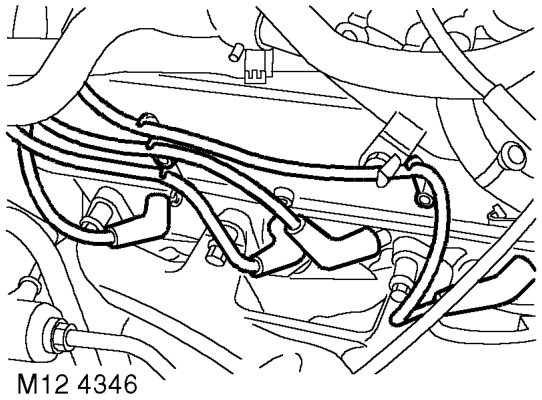

8. Release ht leads from clips on rocker cover.

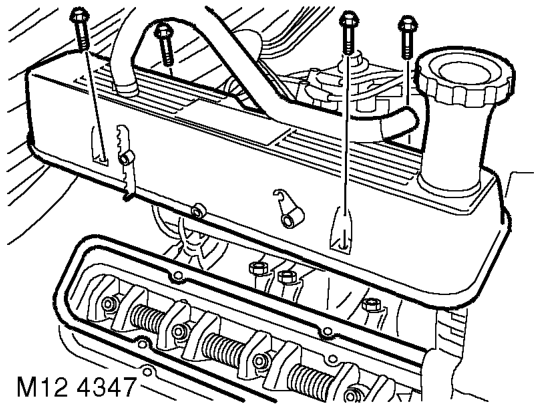

9. Remove 4 bolts securing rocker cover.
10. Remove rocker cover and collect gasket.

Refit

1. Clean mating faces of rocker cover and cylinder head.
2. Using a new gasket, fitted dry, position rocker cover ensuring gasket is correctly located.
3. Fit rocker cover bolts and working in diagonal sequence, tighten to: l Stage 1 - 3 Nm (2.5 lbf.ft) l Stage 2 - 8 Nm (6 lbf.ft)
4. Ensure that outer rim of gasket is correctly positioned around periphery of rocker cover.
5. Secure ht leads in rocker cover clips.
6. Secure injector harness to fuel rail and connect multiplugs to injectors.
7. Position alternator cables, and tighten terminal B+ nut to 18 Nm (13 lbf.ft) and terminal D+ nut to 5 Nm (3 lbf.ft).
8. Clean coolant rail 'O' ring recess.
9. Lubricate and fit new 'O' ring to coolant rail, position coolant rails, fit bolts and tighten to 22 Nm (16 lbf.ft).
10. Models with SAI: Clean air manifold unions, position manifold and tighten unions nuts to 25 Nm (18 lbf.ft).
11. Fit upper inlet manifold. MANIFOLDS AND EXHAUST SYSTEMS - V8, REPAIRS, Gasket - inlet manifold - upper - Without Secondary Air Injection.
12. Refill cooling system. COOLING SYSTEM - V8, ADJUSTMENTS, Drain and refill.
