Land Rover Discovery II (UK)10 · Engine - V8
10 · Engine

SYSTEMS - V8, REPAIRS, Front pipe. (page 2 of 2)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
Engine - V8SYSTEMS - V8, REPAIRS, Front pipe. · page 2 of 2
Diagram

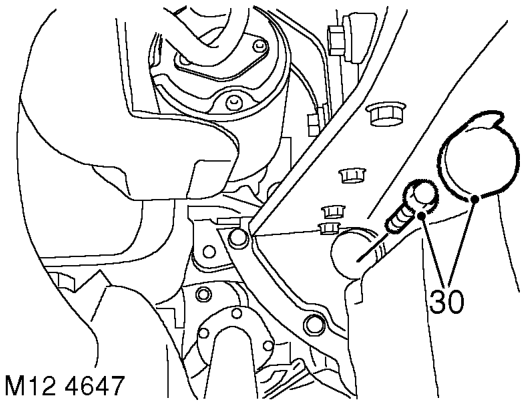

  1. Models with automatic gearbox: Remove access plug and remove 4 bolts securing torque converter to drive plate.

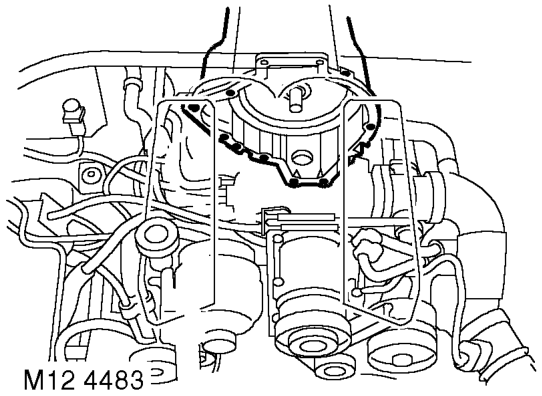

  2. Rotate engine to access bolts.
Rotate engine to access bolts.
  1. Remove 12 bolts securing engine to gearbox. DO NOT remove the top 2 bolts at this stage.
  2. Collect support brackets from bell housing bolts.

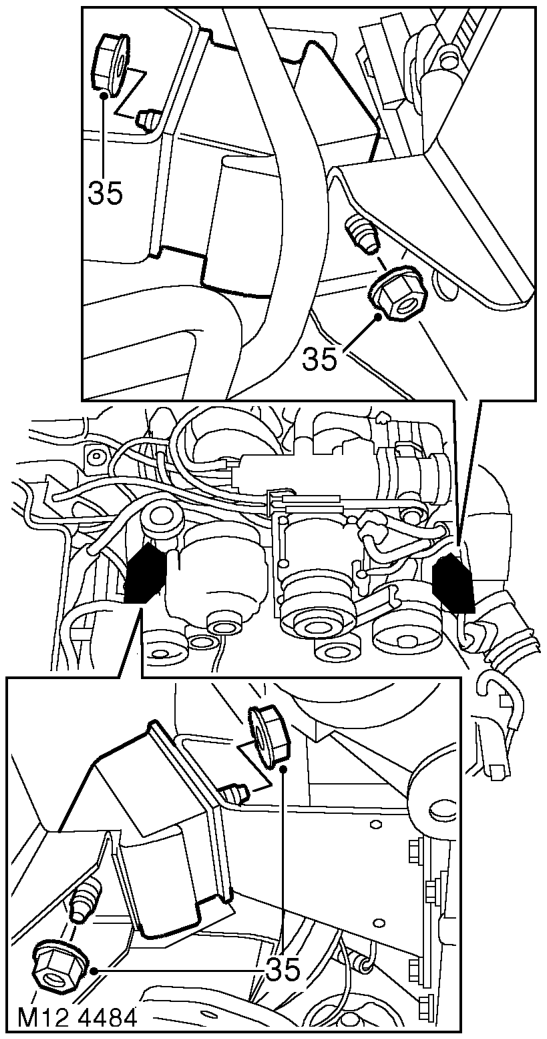

  3. Attach suitable lifting equipment to engine.
Attach suitable lifting equipment to engine.

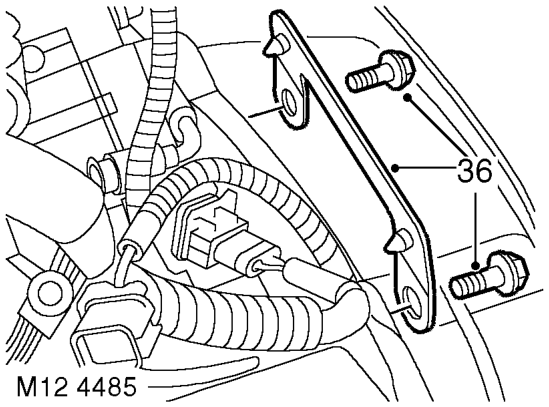

  1. Remove 4 nuts securing engine mountings, raise engine and remove engine mountings.
Remove 4 nuts securing engine mountings, raise engine and remove engine mountings.
  1. Lower engine, remove top bolts securing engine to gearbox and collect bracket.
  2. Support gearbox on a jack.
  3. Release engine from gearbox dowels.
  4. With assistance remove engine from engine bay.
