Land Rover Discovery II (UK)10 · Engine - V8
10 · Engine

Cooler - engine oil (page 3 of 5)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
Engine - V8Cooler - engine oil · page 3 of 5

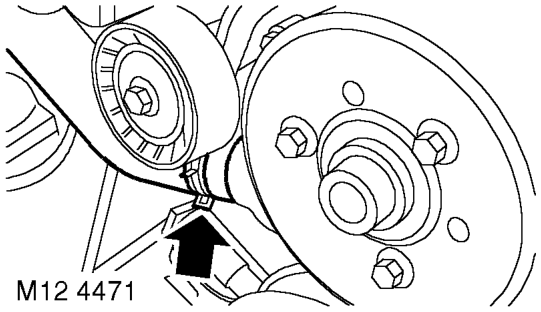

Diagram
  1. Release clip and disconnect coolant hose from coolant pump.

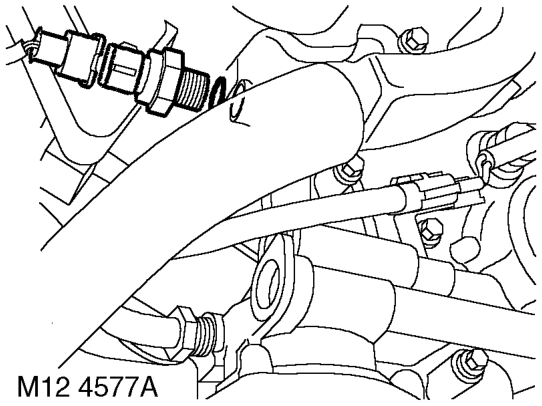

Release clip and disconnect coolant hose from coolant pump.
  1. Disconnect multiplug from oil pressure switch.
  2. Disconnect multiplug from CMP sensor.
  3. If fitted: Loosen union and disconnect oil cooler pipe from timing gear cover. Remove and discard 'O' ring.

CAUTION: Always fit plugs to open connections to prevent contamination.

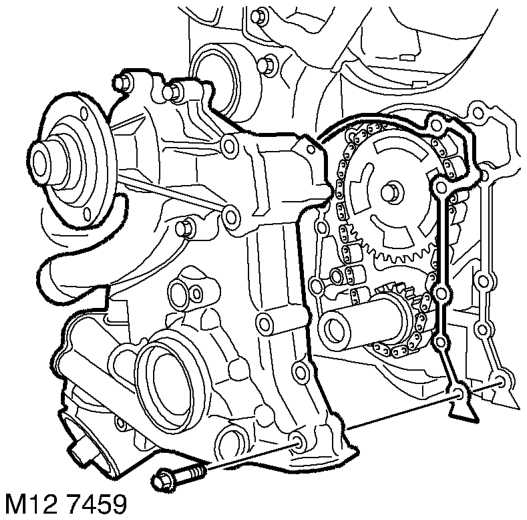

If fitted: Loosen union and disconnect oil cooler pipe from timing gear cover. Remove and
  1. Remove 9 bolts securing timing gear cover and remove cover. Remove and discard gasket.

Refit

  1. Clean mating faces of timing gear cover and cylinder block. Clean dowels and dowel holes.
  2. Fit new gasket, dry, to dowels in cylinder block.
Fit new gasket, dry, to dowels in cylinder block.

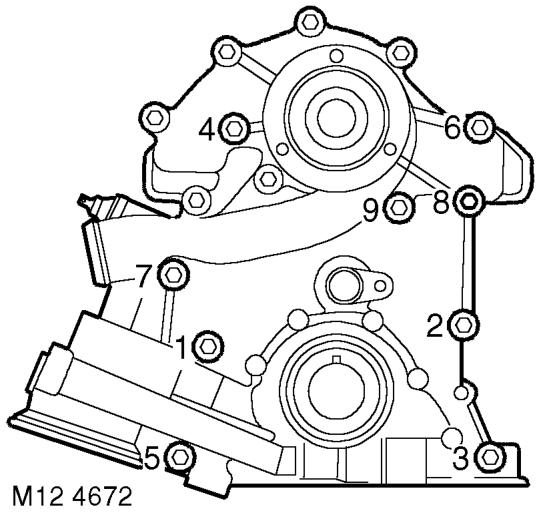

  1. Fit timing gear cover to cylinder block and, working the sequence illustrated, tighten bolts to 22 Nm (17 lbf.ft) . Ensure CMP sensor multiplug bracket is secured by bolt.
  2. If fitted: Fit new 'O' ring to oil cooler pipe, connect pipe to timing gear cover and tighten union to 15 Nm (11 lbf.ft).
  3. Connect multiplug to oil pressure switch.
  4. Connect multiplug to CMP sensor.
  5. Connect coolant hose to coolant pump and secure with clip.
