Glass panel - sunroof

Glass panel - sunroof

$% 76.84.03

The procedure for replacing the rear sunroof glass panel is exactly the same as for the front

Remove

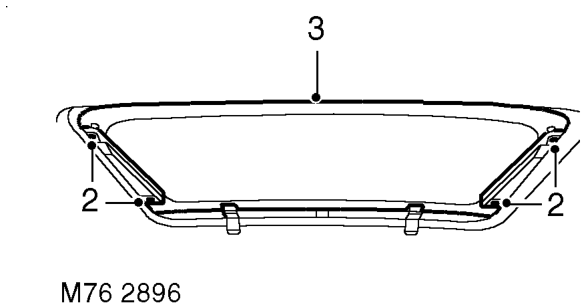

1. Partially open sunroof.

2. Remove 4 Torx screws securing glass to sunroof frame.
3. Remove sunroof glass.

Refit

1. Position glass to frame.
2. Fit Torx screws securing glass to sunroof frame. Do not fully tighten screws at this stage.
3. Adjust position of sunroof glass in relation to roof panel until a 6.5 mm (0.25 in) gap is produced between the front edge of the glass and the sunroof frame.
4. Tighten sunroof glass retaining screws to 3 Nm (2.2 lbf.ft).

Motor - sunroof

$% 76.84.07

This procedure is applicable to the motor of both sunroofs.

Remove

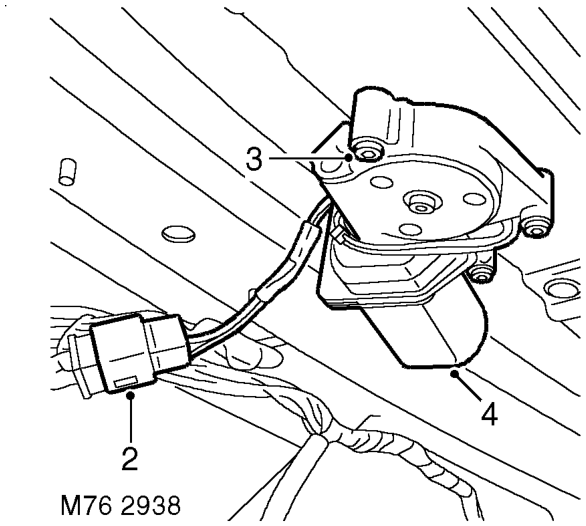

1. Gain access to the sunroof motor: l For front sunroof motor, remove front stowage pocket. INTERIOR TRIM COMPONENTS, REPAIRS, Stowage pocket - front. l For rear sunroof motor, remove headlining. INTERIOR TRIM COMPONENTS, REPAIRS, Headlining.

CAUTION: The sunroof must be fully closed before removing the sunroof motor.

2. Disconnect sunroof motor multiplug.
3. Remove 3 Torx screws securing motor to sunroof tray.
4. Remove sunroof motor.
