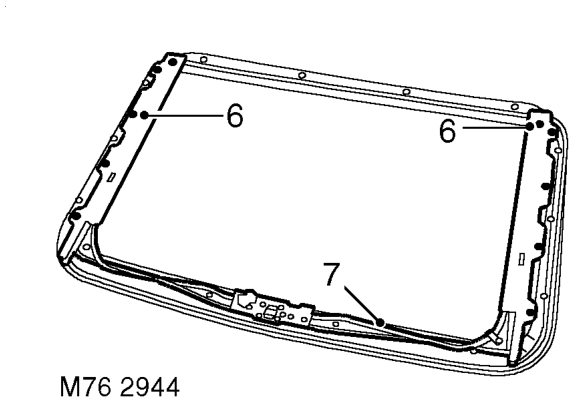

6. Remove 10 Torx screws securing frame to drive cable assembly.
7. Remove drive cable assembly from frame.

Refit

1. Fit drive cable assembly to frame.
2. Fit Torx screws securing frame to drive cable assembly and tighten to 2.5 Nm (1.8 lbf.ft).
3. Fit glass carriers to cables.
4. Fit glass to sunroof frame and secure with Torx screws. Do not fully tighten screws at this stage.
5. Fit sunroof. l For front drive cable assembly: SUNROOF, REPAIRS, Sunroof - front. l For rear drive cable assembly: SUNROOF, REPAIRS, Sunroof - rear.
6. Remove timing pegs supplied with drive cables.
7. Adjust position of sunroof glass in relation to sunroof panel until a 6.5 mm (0.25 in) gap is produced between the front edge of the glass and the sunroof frame.
8. Tighten sunroof glass retaining screws to 3 Nm (2.2 lbf.ft).

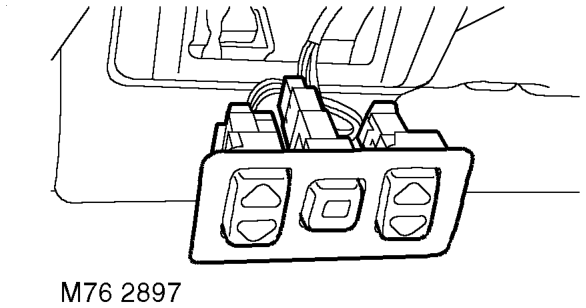

Switch pack - sunroof

$% 76.84.44

Remove

1. Release switch pack from front stowage pocket.
2. Disconnect multiplugs from 3 sunroof switches.
3. Remove switches from switch pack.

Refit

1. Fit switches to switch pack.
2. Connect multiplugs to switches.
3. Fit switch pack to front stowage pocket.
