Drive cable assembly

Refit

Drive cable assembly

$% 76.84.09

This procedure is applicable to the drive cable assembly of both sunroofs.

Remove

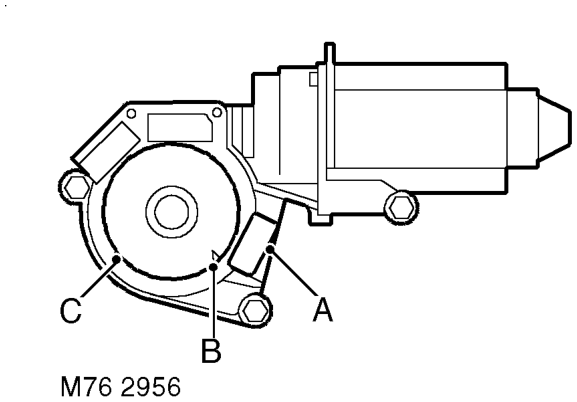

1. Check sunroof motor timing notch (A) aligns with edge of microswitch (B). If motor is out of alignment, rotate counting wheel (C) to correct position using an Allen key.
2. Ensure sunroof drive cables are in fully closed position.
3. Fit motor to sunroof frame.
4. Fit Torx screws securing motor to sunroof tray and tighten to 2 Nm (1.5 lbf.ft).
5. Connect sunroof motor multiplug.
6. Fit interior trim: l For front sunroof motor, fit front stowage pocket. INTERIOR TRIM COMPONENTS, REPAIRS, Stowage pocket - front. l For rear sunroof motor, fit headlining. INTERIOR TRIM COMPONENTS, REPAIRS, Headlining.
1. Remove sunroof: l For front drive cable assembly: SUNROOF, REPAIRS, Sunroof - front. l For rear drive cable assembly: SUNROOF, REPAIRS, Sunroof - rear.
2. Position sunroof assembly on suitable work bench.

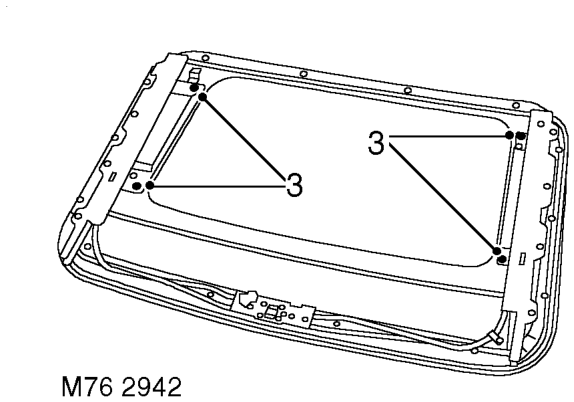

3. Remove 4 Torx screws securing glass to sunroof frame.
4. Remove sunroof glass.

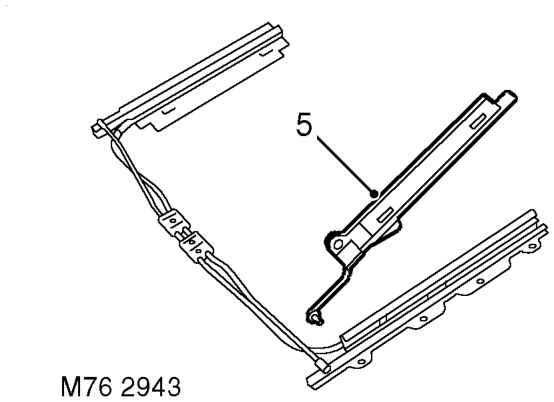

5. Release both glass carriers from cables and remove.
