Wipers and washers (Washers): Description and operation (page 3 of 4)
- Make
- Land Rover
- Model
- Discovery II (UK)
- Section
- Description and operation

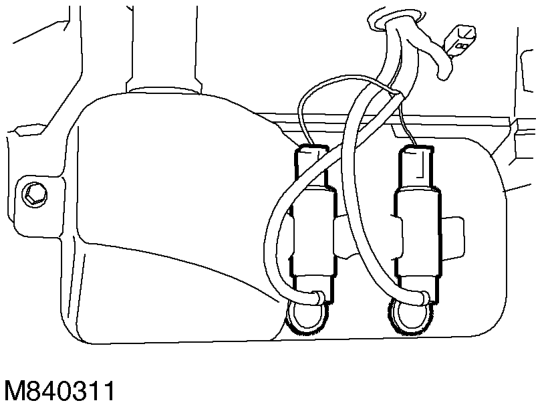

Front washer pump
The front washer pump consists of a DC motor with an impeller. It is located in the rear of the washer fluid reservoir and can be identified by its black top.
Operating the front washer switch provides battery voltage to the front washer pump. This same battery voltage signal also goes to the BCU and increments the headlamp powerwash counter providing the headlamps are switched on.
Rear washer pump
The rear washer pump consists of a DC motor with an impeller. It is located in the rear of the washer fluid reservoir and can be identified by its red top.
Operating the rear washer switch provides battery voltage to the rear washer pump.
