L322 Range Rover Service Procedures
BRAKES
REPAIRS
70-15
11. Remove bolt securing handbrake cable to
backplate.
12. Release cable from chassis clip.
13. Remove bolt securing cable retaining clip to
sub-frame.
NOTE: Do not carry out further dismantling if
component is removed for access only.

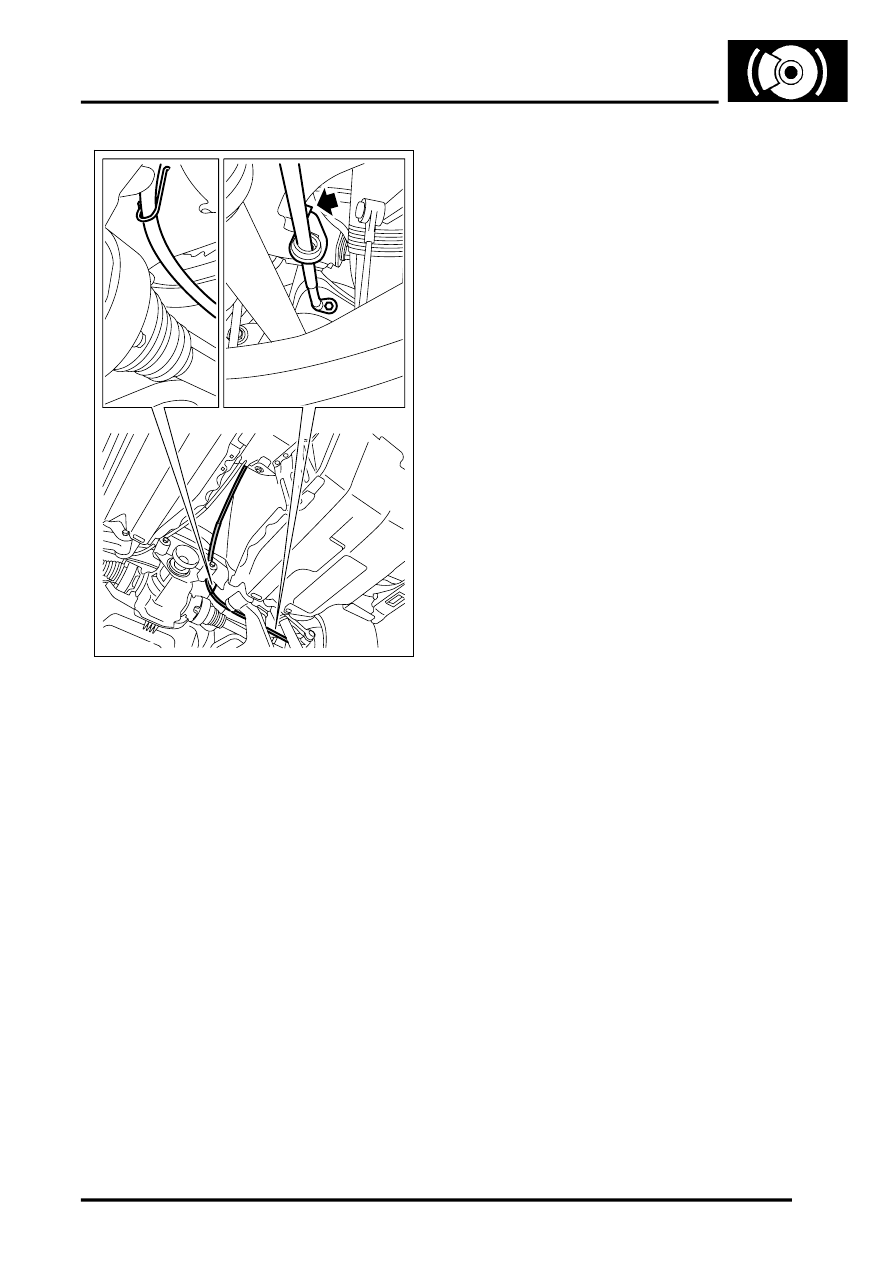

14. Remove cable mounting bracket from
handbrake cable.
Refit
1. Fit support bracket to cable.
2. Clean expander.
3. Position handbrake cable and secure to
expander.
4. Fit and secure handbrake cable to backplate,
tighten bolt to 8 Nm (6 lbf.ft).
5. Position cable support clip to sub-frame, tighten
bolt to 5 Nm (4 lbf.ft).
6. Secure cable in chassis clip.
7. Feed cable through body to handbrake lever.
8. Connect cable to compensator.
9. Secure cable retaining clip to handbrake
assembly.
10. Fit centre console.
11. Fit rear propeller shaft.
DRIVESHAFTS, REPAIRS, Propeller
12. Clean backplate and brake disc with brake
cleaning fluid.
13. Clean brake adjuster, lubricate threads with
grease and set to minimum extension.
LUBRICANTS AND SEALANTS,
Lubrication.
14. Assemble brake shoes with adjuster and lower
return spring.
15. Position brake shoe assembly, fit retainers and
upper return spring.
16. Fit rear brake disc.
M70 1163
