ENGINE - V8

REPAIRS 12-2-63

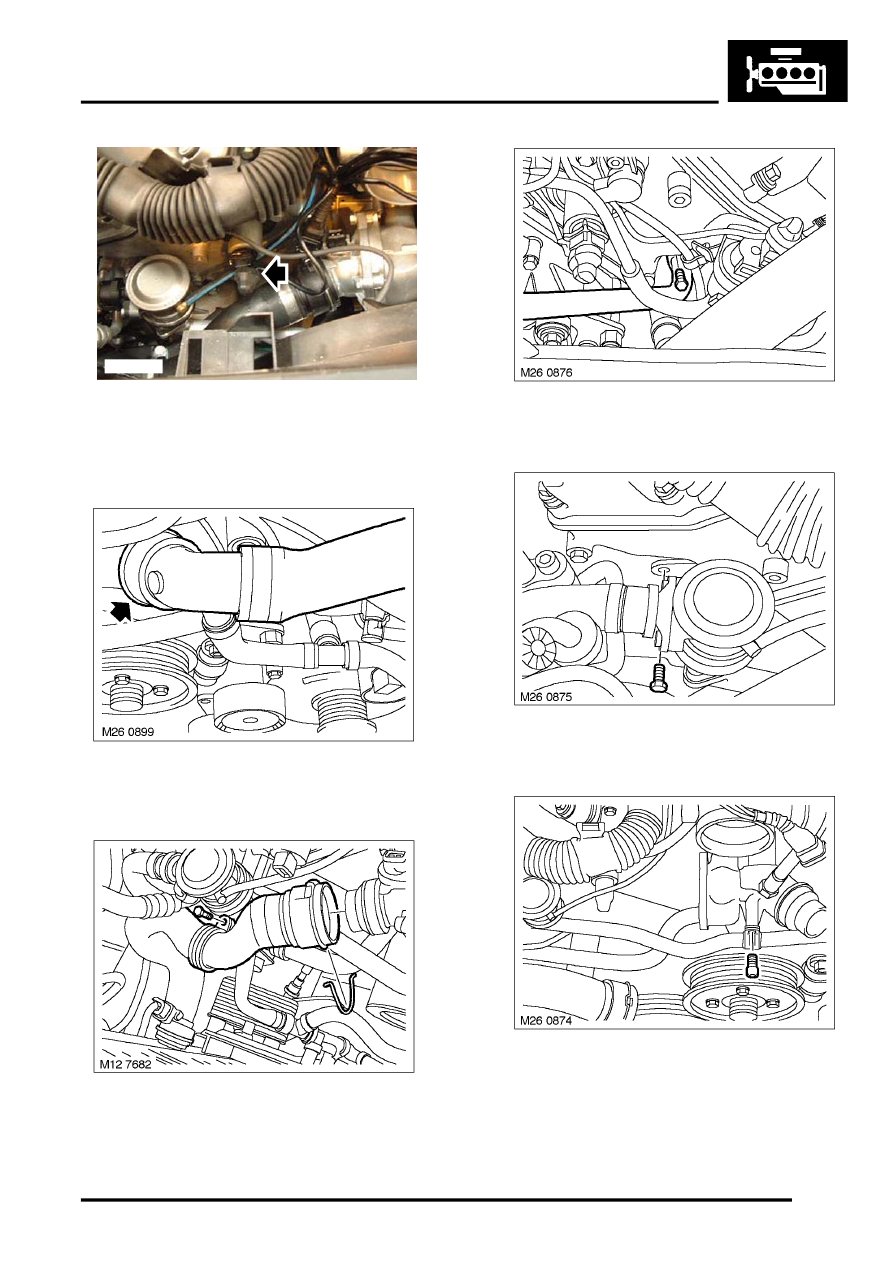

9. Disconnect multiplug from VCC solenoid.

10. Remove RH camshaft cover.

 +

 Engine - V8, REPAIRS, Gasket -

camshaft cover - RH.

11. Release clip and disconnect coolant hose from

coolant pump.

12. Release clip, disconnect radiator bottom hose

from thermostat housing and remove bolt
securing 'P' clip.

13. Remove bolt securing SAI pipe to LH cylinder

head.

14. Remove bolt securing SAI pipe to RH cylinder

head.

15. Remove Allen bolt securing secondary air

injection (SAI) pipe clip to coolant pump.

16. Release SAI pipe from cylinder heads and

position aside. Discard 'O' rings.

M86 5693
