ENGINE - V8
REPAIRS 12-2-65

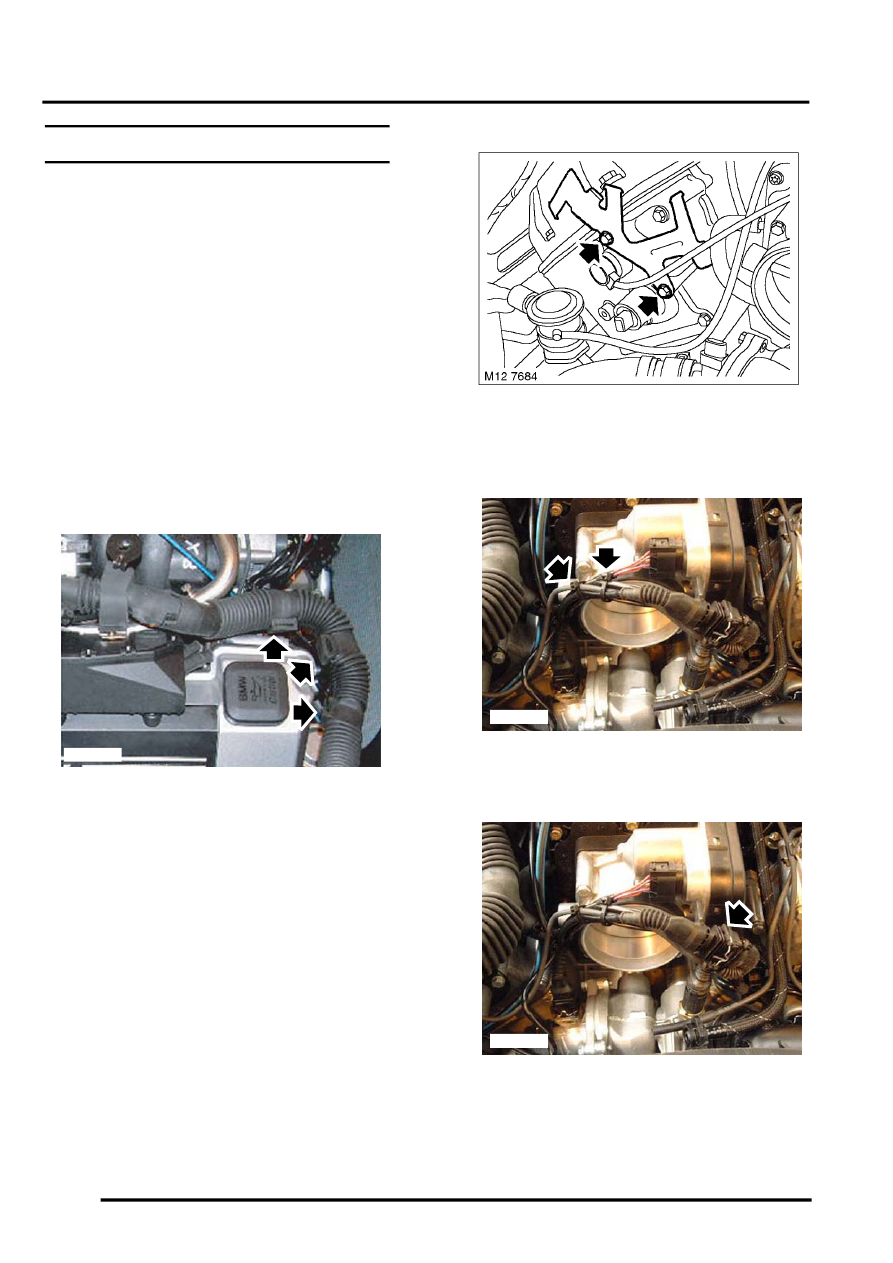

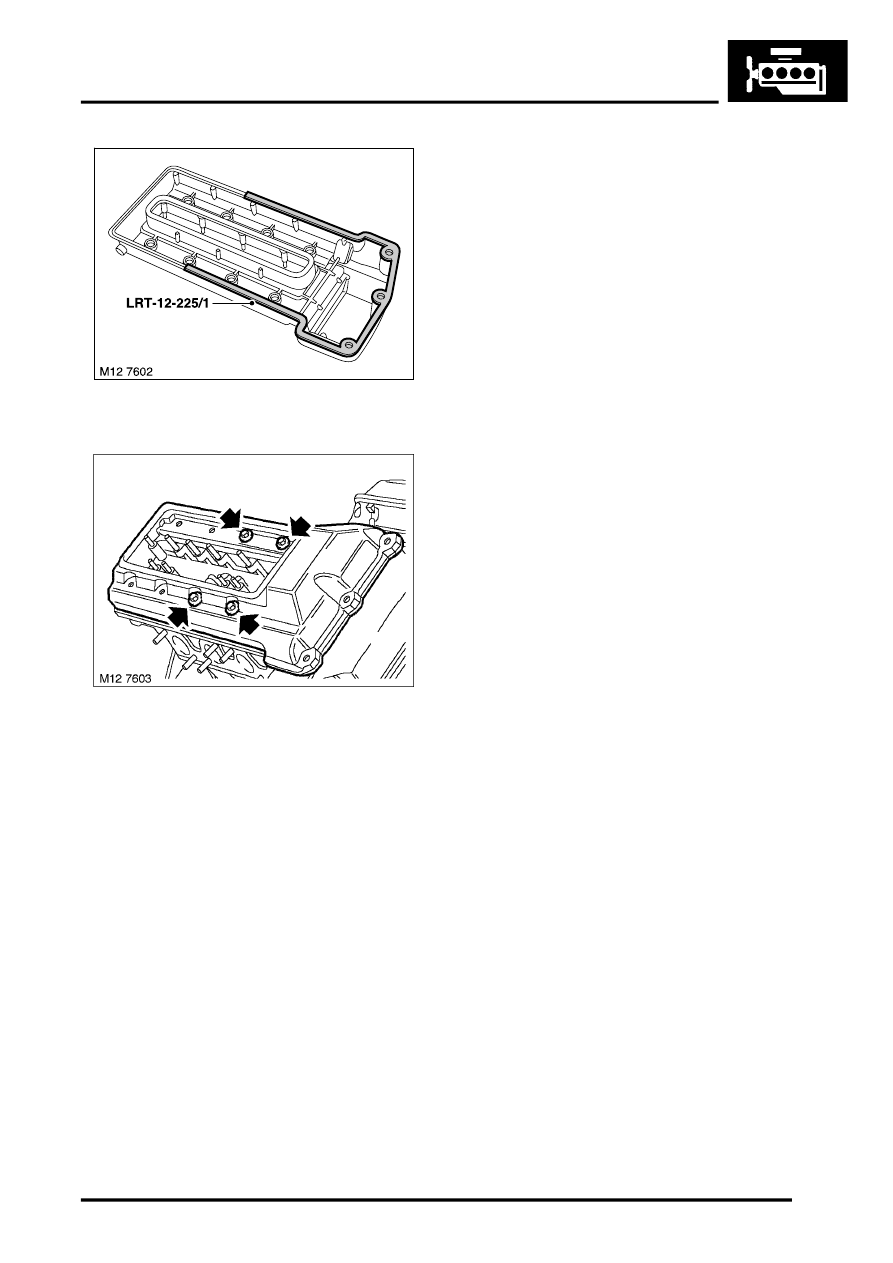

8. Fit LRT-12-225/1 to RH camshaft cover.
9. Fit camshaft cover and tool, fit 4 bolts and
tighten to 10 Nm (7 lbf.ft).
10. Tighten bolts securing timing gear cover to 15
Nm (11 lbf.ft).
11. Remove 4 bolts securing camshaft cover,
remove camshaft cover and LRT-12-225/1.
12. Fit new sealing washer, fit timing chain
tensioner and tighten plug securing chain
tensioner to 40 Nm (30 lbf.ft).
13. Clean VCC solenoid, VCC solenoid seal and
mating faces.
14. Lubricate inner mating face of VCC solenoid
seal.
15. Fit VCC solenoid seal, fit bolts and tighten.
16. Fit 2 new 'O' rings to SAI pipe and position SAI
pipe to engine. Fit and tighten 3 bolts securing
SAI pipe to engine.
17. Connect 2 coolant hoses to coolant pump and
secure with clips.
18. Fit RH camshaft cover.
Engine - V8, REPAIRS, Gasket -
19. Connect multiplug to VCC solenoid.
20. Connect multiplug to CMP sensor.
21. Secure CMP sensor harness with 3 cable ties.
22. Fit engine harness bracket to engine harness,
fit and tighten 2 bolts.
23. Fit fan cowl.
24. Fill cooling system.
ADJUSTMENTS, Coolant - drain, flush &
refill.
25. Connect battery earth lead.
